BFRT-4PK1TB5MP
2 reviews
"NDAA COMPLIANCE" 4 5MP Bullet TVI Package Black1TB
TVI Package

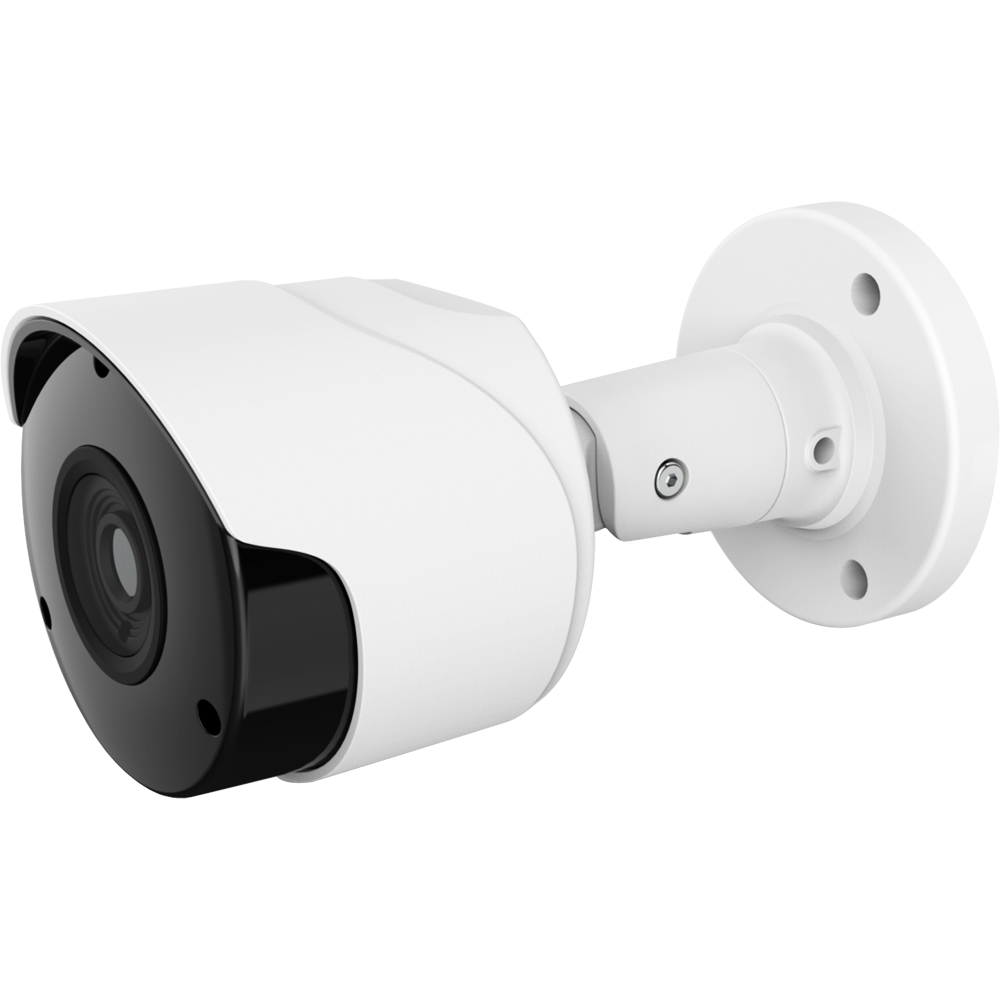

4x BFRT-5MPB
1X EHDVR0404-5MPM
1X 1TB
| Technical Specifications | |
| Model No. | BFRT-5MPB28 |
| Camera | |
| Image sensor | 1/2.7“ Progressive Scan CMOS |
| Min. illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR /0.014 Lux @ (F1.4,AGC ON),0 Lux with IR |
| Shutter time | 1 / 25 s to 1 / 50,000 s |
| Lens | 2.8mm Angle of View: 90.9° |
| Lens mount | M12 |
| Day & night | ICR |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | DWDR |
| Synchronization | Internal synchronization |
| HD Video Output | 1 Analog HD ouput Yellow |
| Video | Compatible with 5MP TVI, 4MP TVI, Analog |
| S/N Ratio | More than 52dB |
| Image | |
| Max. Image Resolution | 2592 (H) × 1944 (V) |
| Signal System | NTSC |
| Frame rate | 5MP@20fps |
| Image settings | Saturation, brightness, contrast, sharpness adjustable through client software or web browser |
| BLC | Supported |
| General | |
| Operating conditions | (-22°F ~ 140 °F) humidity 90% or less (non-condensing) |
| Power supply | 12 VDC |
| Power consumption | Max. 4W |
| Weather proof rating | IP66 |
| IR range | Up to 75 Feet |
| Dimension | φ70×149.5 mm (φ2.76” ×5.89” |
| Weight | 360 g (0.79 lb) |
| Technical Specifications | |
| Model No. | EHDVR0404-5MPM |
| Video/Audio input | |
| Video compression | H.264, H.264+, H.265, H.265+ |
| Video input | 4-ch |
| Video input interface | BNC (1.0 Vp-p, 75 Ω) |
| Supported Camera Types | HD ANALOG : 5MP-Lite:12fps (each ch) 4MP-Lite:14fps(each ch)- 3MP:9fps(each ch) 1080P:13fps(each ch) 720P:PAL:25fps(each ch)/NTSC::30fps(each ch) IP : Up to 5MP NTSC: 30fps(each ch) |
| Audio compression | G.711u |
| Audio input | 4-ch |
| Audio input interface | RCA (2.0 Vp-p, 1 kΩ) |
| Video /Audio output | |
| HDMI output | 1-ch, resolution: 4K(3840*2160)/60Hz,4K(3840*2160)/30Hz,1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| VGA output | 1-ch, resolution: 1920×1080P / 60Hz, 1280×1024 / 60Hz, 1280×720 / 60Hz, 1024×768 / 60Hz |
| Recording resolution | Analog : 5MP-Lite/4MP-Lite/3MP/1080P/720P/960H IP : 5MP/4MP/3MP1080P/720P |
| Frame rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
| Video bit rate | 32 Kbps-6 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio bit rate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 4-ch |
| Playback Resolution | 5MP/4MP/3MP/1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Network Management | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 12TB capacity for each disk |
| External interface | |
| Network interface | 1; 10M / 100M self-adaptive Ethernet interface |
| Serial interface | 1; standard RS-485 serial interface, half-duplex |
| USB interface | 2x USB2.0 |
| P2P Connection | Built in |
| Mobile App | RXCAMVIEW Android/iPhone |
| General | |
| Power supply | 12V DC 2A |
| Consumption | ≤ 15 W |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working humidity | 10% ~ 90% |
| Chassis | Mini chassis |
| Dimensions | 300 × 227 × 53 mm (11.81 × 8.94 × 2.1 inch) |
| Weight | ≤ 0.8 kg (1.8 lb) |
