BFRT-1080PBN
2 reviews
Discontinued

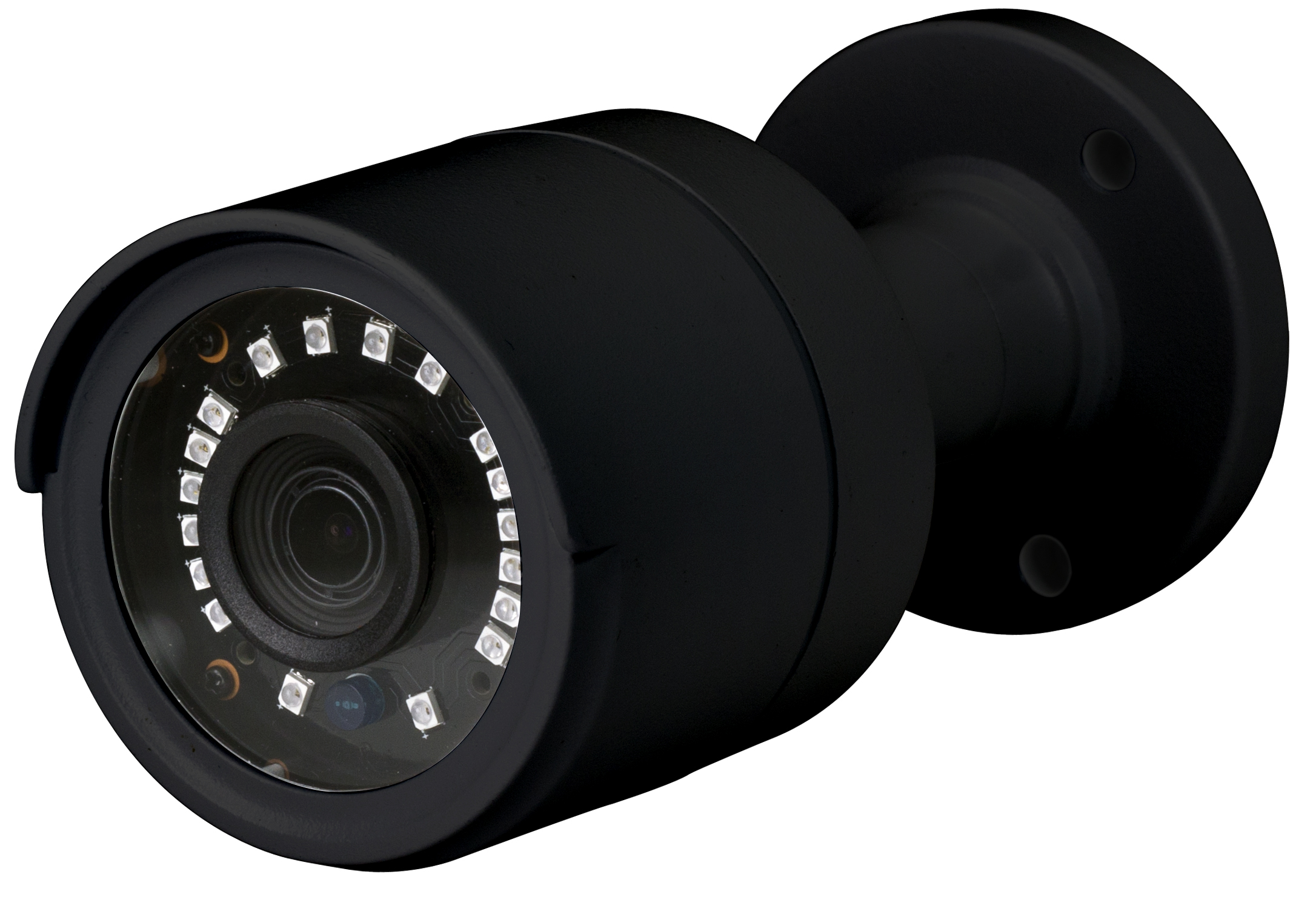

3.6 MM HD 1080P TVI DAY/NIGHT WEATHERPROOF IR FIXED LENS BULLET CAMERA
● 1/3“ Progressive Scan CMOS
● HD1080P Video Output
● 4 in 1, HD-TVI, CVI, AHD, Analog
● UTC, OSD, DWDR, 3D DNR, Smart IR
● 3.6mm Fixed Lens
● 24 Built in IR LEDs, (75 Ft. Night Vision)
● Vandal Resistant IP66 Weatherproof
● True Day/Night
● 3 Years Warranty
| Technical Specifications | |
| Model No. | BFRT-1080PBN |
| Camera | |
| Image sensor | 1/2.7“ Progressive Scan CMOS |
| Min. illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR /0.014 Lux @ (F1.4,AGC ON),0 Lux with IR |
| Shutter time | 1 / 25 s to 1 / 50,000 s |
| Lens | 3.6mm Angle of View: 80.9° |
| Lens mount | M12 |
| Day & night | ICR |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | DWDR |
| Synchronization | Internal synchronization |
| HD Video Output | 1 Analog HD ouput 4 in 1, HD-TVI, CVI, AHD, Analog |
| CVBS Output | N/A |
| S/N Ratio | More than 52dB |
| Image | |
| Max. Image Resolution | 1920(H)*1080(V) |
| Signal System | NTSC |
| Frame rate | 1080p@25fps / 1080p@30fps |
| Image settings | Saturation, brightness, contrast, sharpness adjustable through client software or web browser |
| BLC | Supported |
| General | |
| Operating conditions | (-22°F ~ 140 °F) humidity 90% or less (non-condensing) |
| Power supply | 12 VDC |
| Power consumption | Max. 4W |
| Weather proof rating | IP66 |
| IR range | Up to 20m |
| Dimension | φ70×149.5 mm (φ2.76” ×5.89” |
| Weight | 360 g (0.79 lb) |
