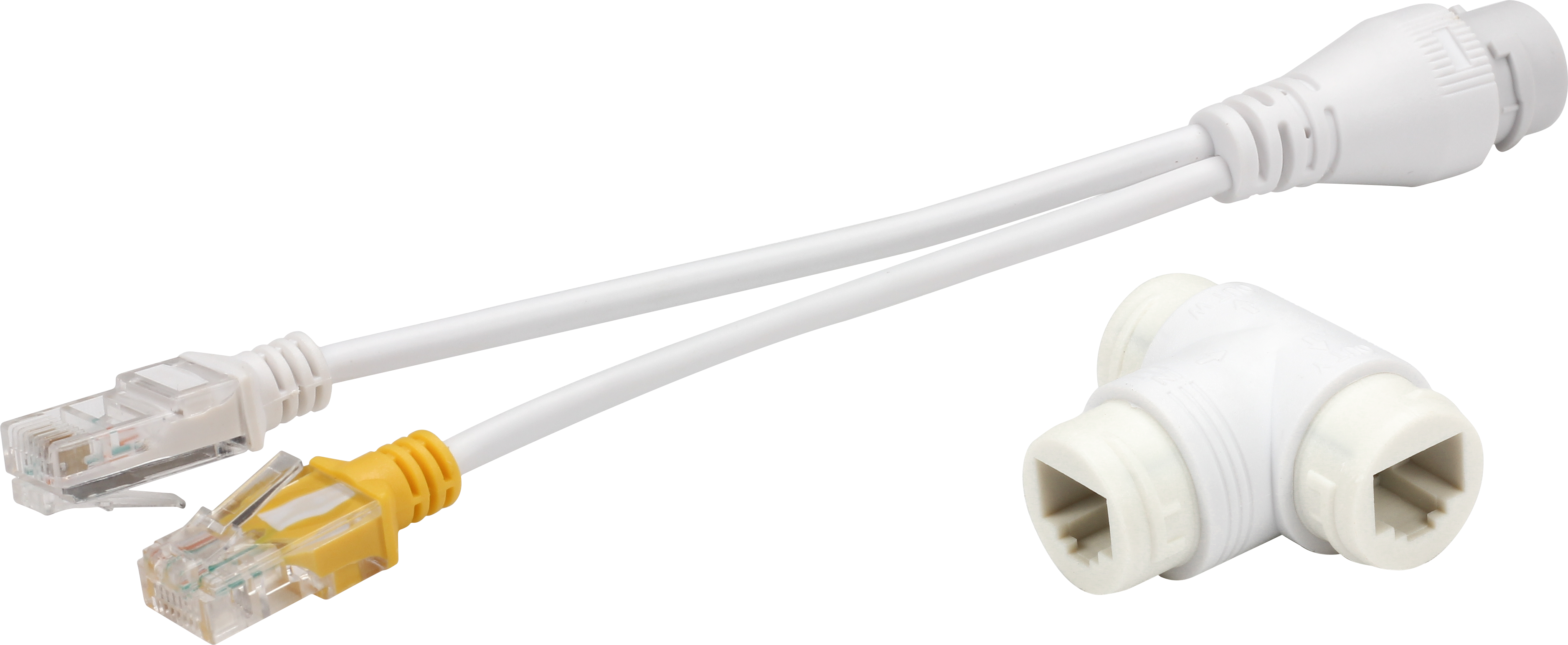

POE-SP-102
2 reviews
Ethernet and PoE Port Multiplexer
- Connects two IP/PoE devices to a PoE switch using a single Cat5/6 cable
- Provides up to 57W to each of 2 devices
- Reduces installation costs and time
- Compatible with IEEE 802.3af and IEEE 802.3at
- No power source required
- Low cost and easy to use
| Transmission Distance | 130m/(Max 220m) | |
| Networking Standard | IEEE 802.3i 10BASE-T | |
| IEEE 802.3u 100BASE-TX | ||
| IEEE 802.3af/at Power over Ethernet | ||
| Power | A(Synthesis):8 wires, 4pair split 10/100 Connector RJ45 | |
| B(Separation):4 wires, 4pair split 10/100 Connector RJ45 with 1&2 and 3&6 | ||
| Input voltage max:57V | ||
| Input current at 48V: 60 watts total | ||
| Compatible1/2(+52V),3/6(GND) | ||
