C112A
2 reviews

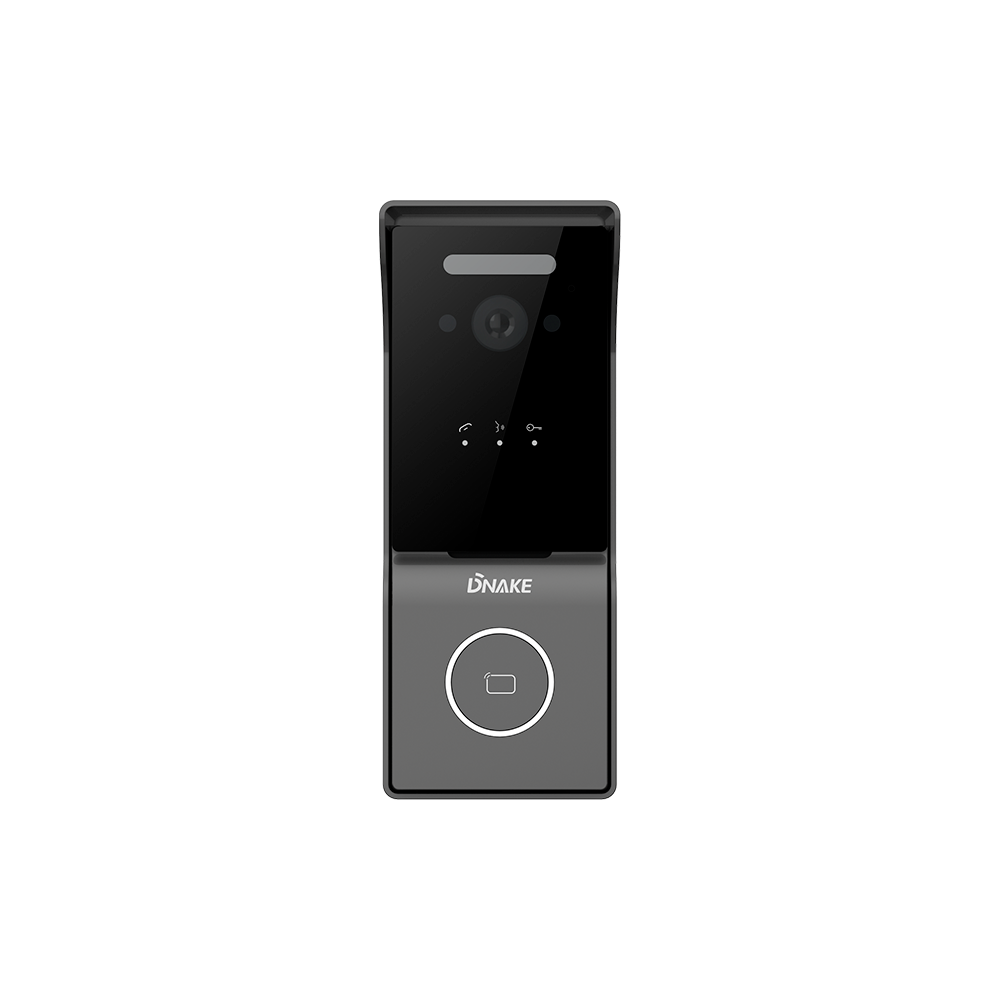

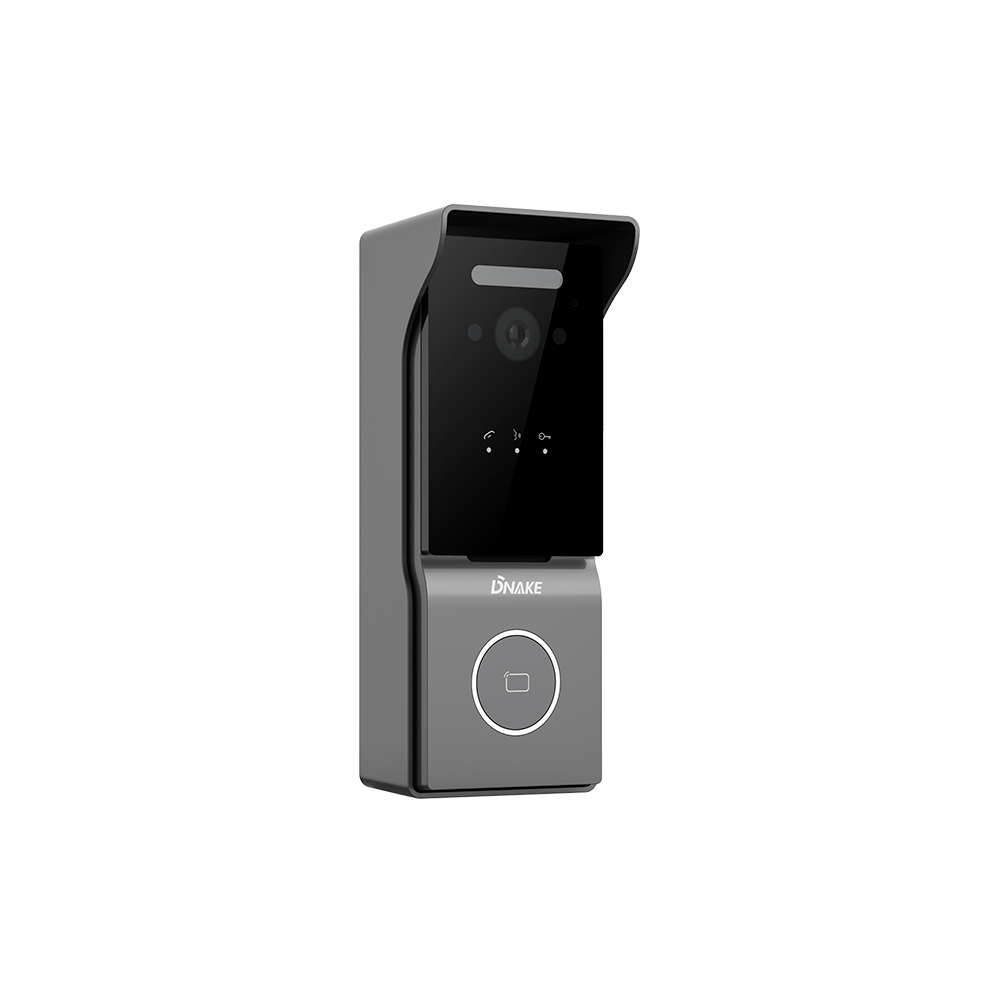

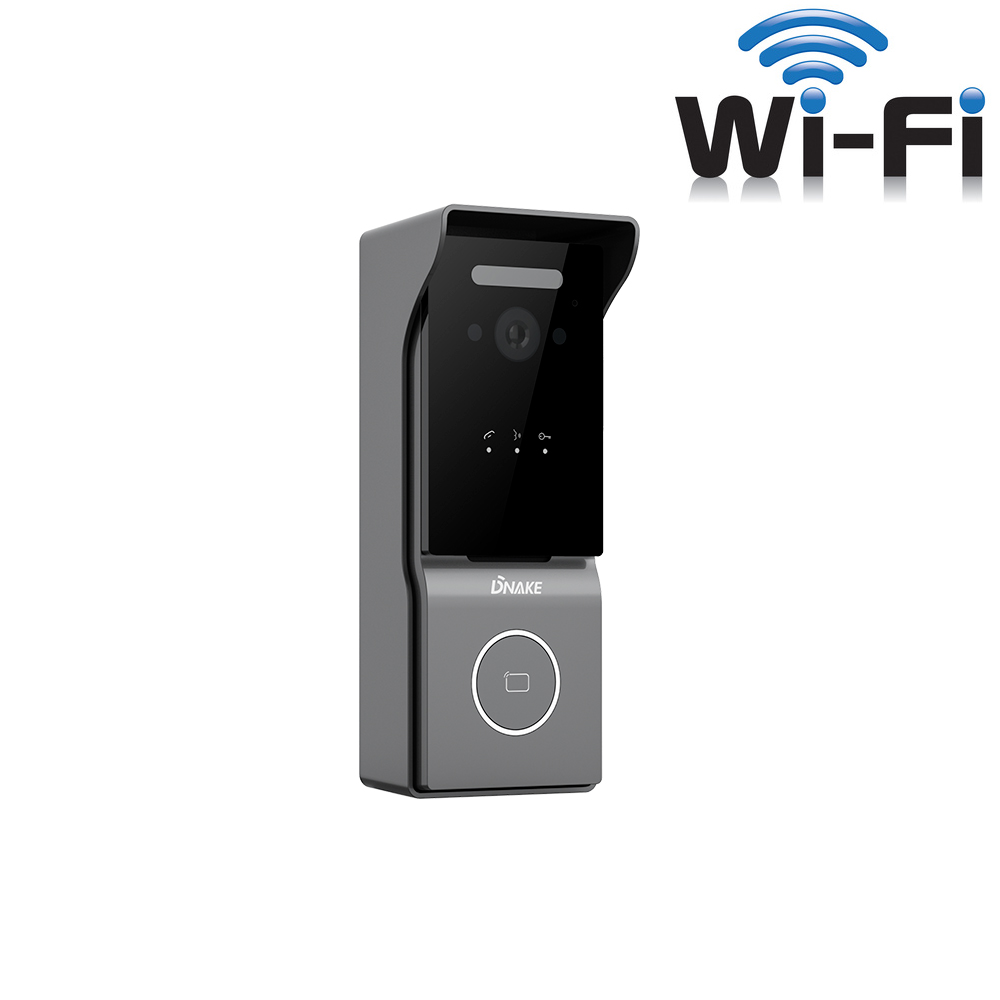

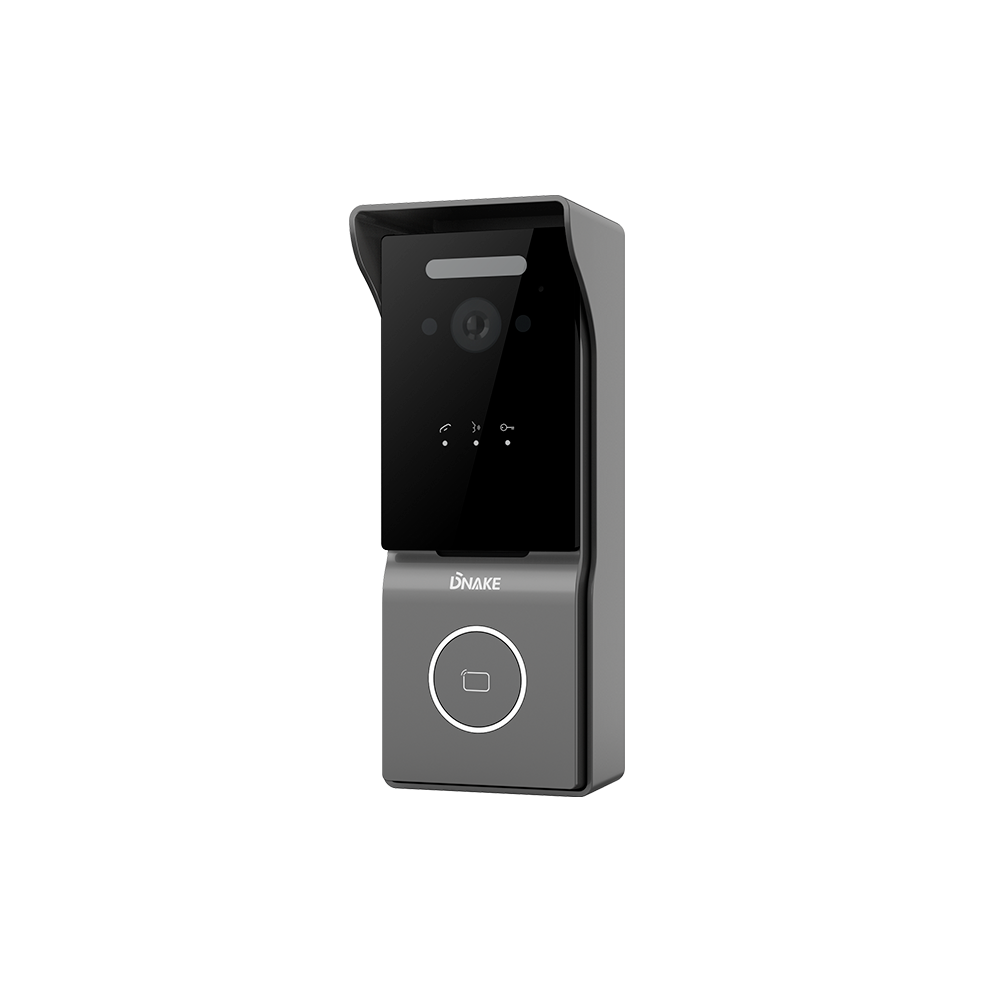

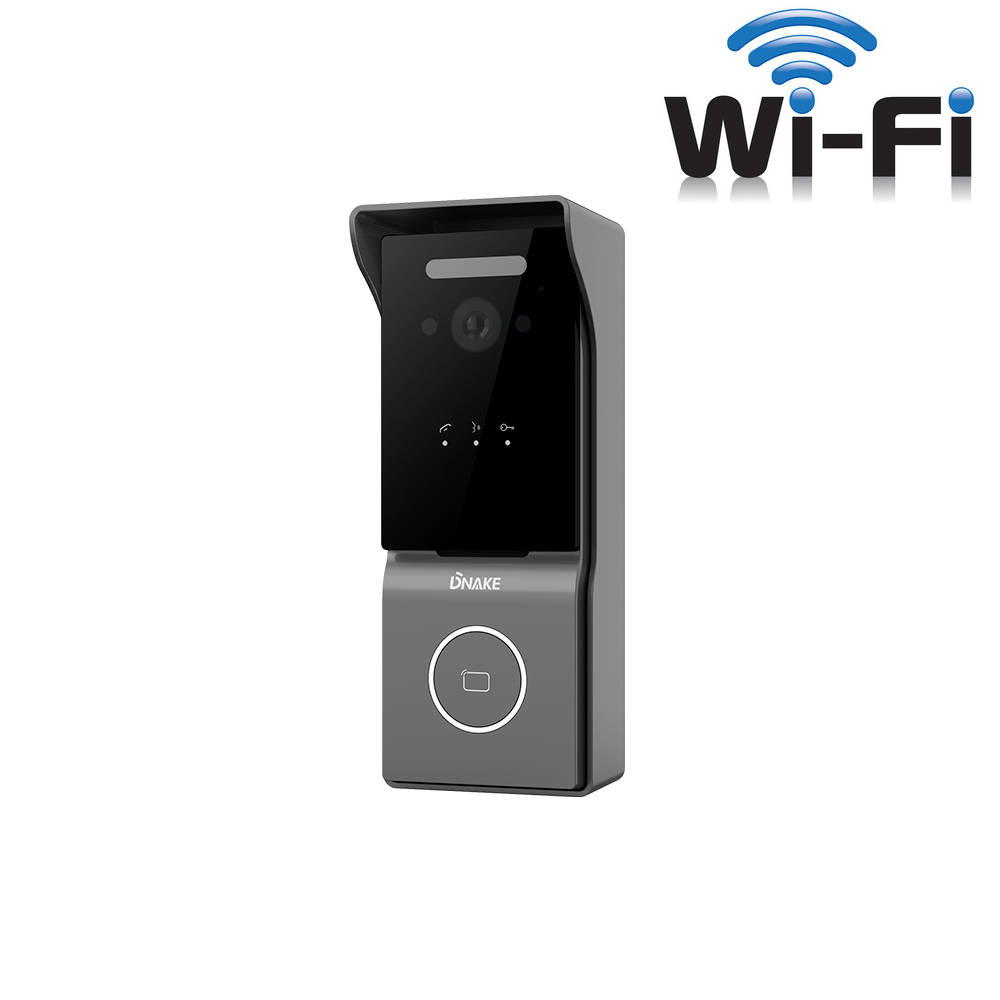

WIFI Mini 1 Button Door Station
| The C112 enables you to make the video call with villa entrance door, and open the door remotely from indoor monitor or mobile APP. It also makes an easy integration with SIP devices. |
| Key Features |
| Compact Design |
| Powered by PoE or power adapter (DC12V/2A) |
| IC card reader |
| Motion Detection Tamper Alarm |
| 2MP, 1080P HD Camera, digital WDR, WIFI |
| H.265 Video Codec |
| Physical | |
| System: Linux | Door Entry: IC (13.56MHz) & ID (125kHz) card, NFC |
| 2MP, 1080P HD Camera, digital WDR, WIFI | Reset Button:1 |
| Wi-Fi: IEEE802.11 b/g/n,@2.4GHz | RS485 Port: 1 |
| Front Panel: Plastic | Relay Out: 2 |
| Power Supply: PoE (802.3af) or DC 12V/2A | Input: 2 |
| Standby Power: 1.5 W | IP / IK Rating: IP65 / IK08 |
| Rated Power: 3.5 W | Installation: Flush Mounting |
| TF Card Slot:1 | Flush Mounting DIM: 210 x 120 x 32 mm |
| Indicator Light: 3 | Working Temperature: -40℃ to +55℃ |
| Door Entry: IC (13.56MHz) card | Storage Temperature: -40℃ to +70℃ |
| Ethernet Port: 1 x RJ45, 10/100 Mbps adaptive | Working Humidity: 10% to 90% (non-condensing) |
| Audio | Networking |
| Audio Codec: G.711 | Protocol: ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Echo Cancellation | |
| DTMF: RFC2833 | |
| Microphone: Built-in microphone | |
| Speaker: Built-in speaker | |
| Video | Package Features |
| Video Codec: H.264 | (Power adapter not included) |
| Video Resolution: 1280 x 720 | Flush Mounting Box |
| Viewing Angle: 110°(H) / 60°(V) / 125°(D) | Front Aluminum Panel |
| Max. Image Transfer Rate: 720p – 25fps | Screwing Kit |
| Light Compensation: LED white light | Quick Start Guide |
