DSS-C112-PK
2 reviews

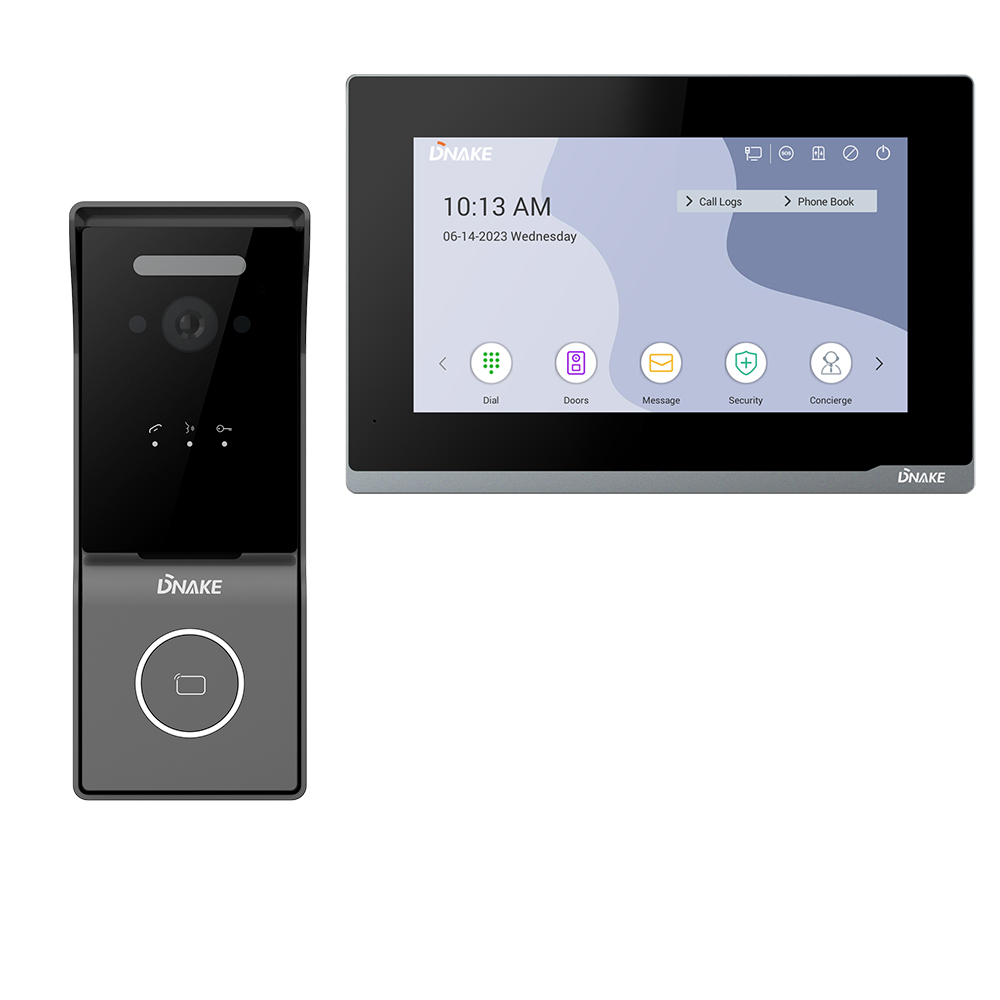

1 Door Video Intercom Kit 1x C112R 1x E217-W
| Key Features |
| Compact Design |
| Powered by PoE or power adapter (DC12V/2A) |
| IC card reader |
| Motion Detection Tamper Alarm |
| 2MP, 1080P HD Camera, digital WDR |
| H.265 Video Codec |
| Key Features |
| Easy configuration |
| 7-inch capacitive touch screen |
| Powered by PoE or power adapter (DC12V/2A) |
| Support SIP 2.0 protocol, easy integration with other SIP devices |
| Easy integration with elevator control system |
| Support monitoring 8 IP cameras |
| Physical | |
| System: Linux | Door Entry: IC (13.56MHz) & ID (125kHz) card, NFC |
| 2MP, 1080P HD Camera, digital WDR | Reset Button:1 |
| Wi-Fi: IEEE802.11 b/g/n,@2.4GHz | RS485 Port: 1 |
| Front Panel: Plastic | Relay Out: 2 |
| Power Supply: PoE (802.3af) or DC 12V/2A | Input: 2 |
| Standby Power: 1.5 W | IP / IK Rating: IP65 / IK08 |
| Rated Power: 3.5 W | Installation: Flush Mounting |
| TF Card Slot:1 | Flush Mounting DIM: 210 x 120 x 32 mm |
| Indicator Light: 3 | Working Temperature: -40℃ to +55℃ |
| Door Entry: IC (13.56MHz) card | Storage Temperature: -40℃ to +70℃ |
| Ethernet Port: 1 x RJ45, 10/100 Mbps adaptive | Working Humidity: 10% to 90% (non-condensing) |
| Audio | Networking |
| Audio Codec: G.711 | Protocol: ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Echo Cancellation | |
| DTMF: RFC2833 | |
| Microphone: Built-in microphone | |
| Speaker: Built-in speaker | |
| Video | Package Features |
| Video Codec: H.264 | (Power adapter not included) |
| Video Resolution: 1280 x 720 | Flush Mounting Box |
| Viewing Angle: 110°(H) / 60°(V) / 125°(D) | Front Aluminum Panel |
| Max. Image Transfer Rate: 720p – 25fps | Screwing Kit |
| Light Compensation: LED white light | Quick Start Guide |
| Physical | |
| System: Linux | RS485: 1 |
| RAM: 64 MB | Power Output: 1 (12V/100mA) |
| ROM: 128 MB | Doorbell Input: 8 (use any alarm input port) |
| Front Panel: Plastic | Alarm Input: 8 |
| Power Supply: PoE (802.3af) or DC 12V/2A | Installation: Surface Mounting / Desktop |
| Standby Power: 1.5 W | Dimension: 195 x 130 x 14.5mm |
| Rated Power: 9 W | Working Temperature: -10℃ to +55℃ |
| Ethernet Port: 1 x RJ45, 10/100 Mbps adaptive | Working Humidity: 10% to 90% (non-condensing) |
| Display | Networking |
| Display: 7-inch TFT LCD | Protocol: SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Screen: Capacitive touch screen | |
| Resolution: 1024 x 600 | |
| Audio | Package Features |
| Audio Codec: G.711 | Package Content: |
| Echo Cancellation | E217 (Power adapter not included) |
| DTMF: RFC2833 | Bracket |
| Microphone: Built-in microphone | Screwing Kit |
| Speaker: 8Ω / 1W | Quick Start Guide |
| Qty/CTN: 22 pcs | |
| Video | N.W/PCS: 0.473 kg |
| Video Codec: H.26 | G.W/CTN: 13.2 kg |
| Giftbox Size: 236 x 157 x 45 mm | |
| Carton Size: 420 x 360 x 359 mm |
