S213M-2-S
2 reviews

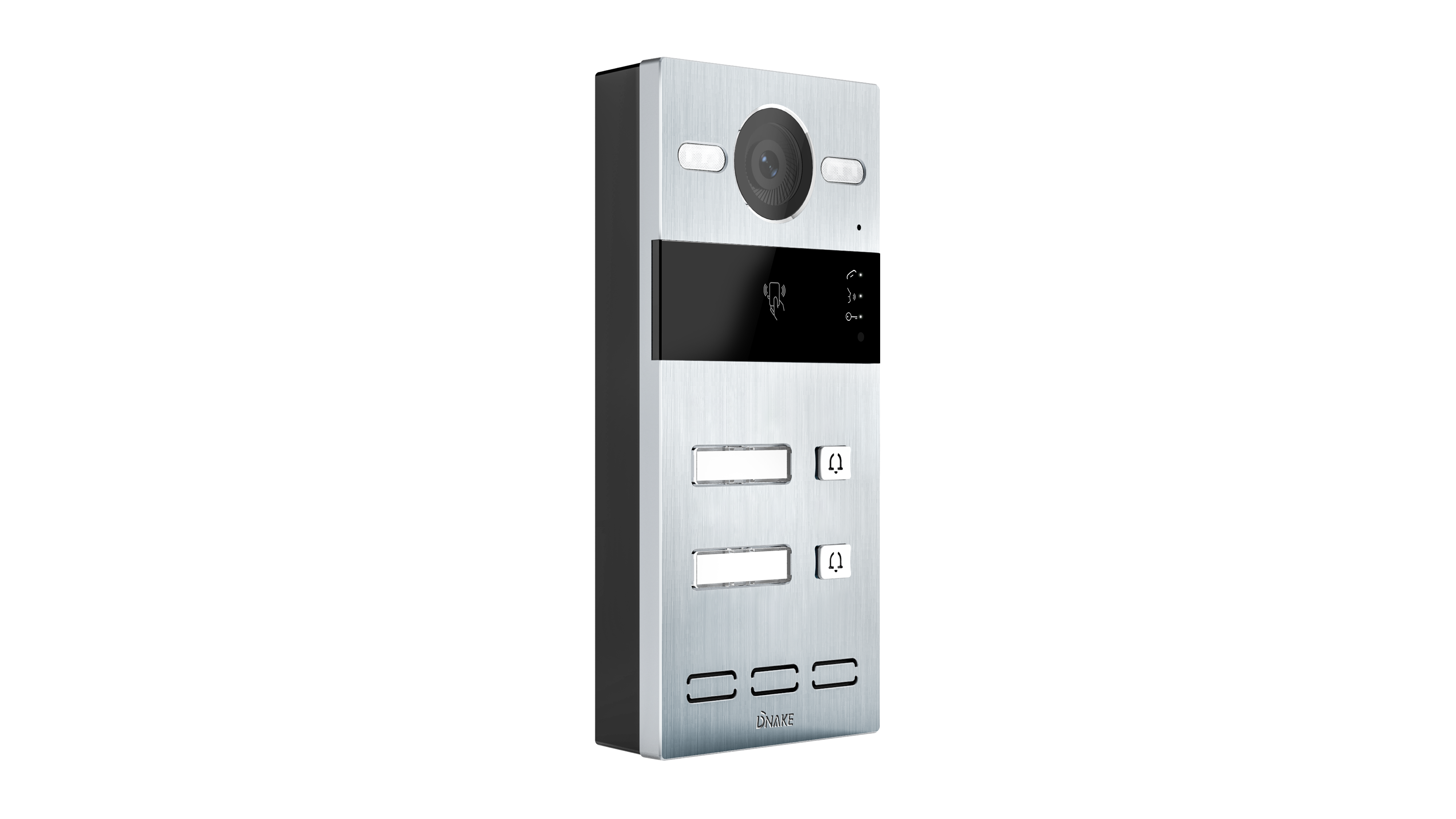

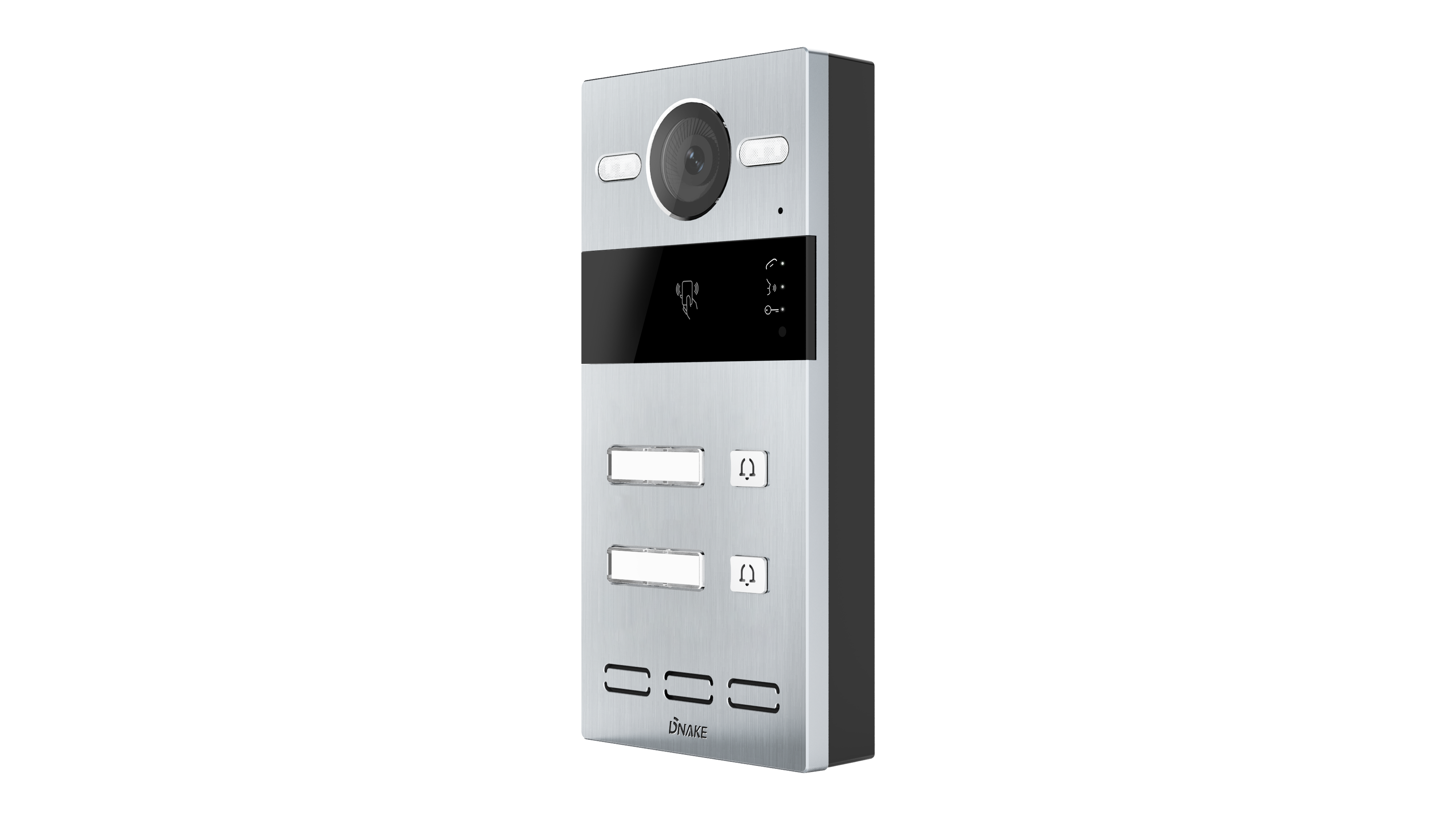

2 Buttons Door Station
| Key Features |
| Powered by PoE or power adapter (DC12V/2A) |
| Support IC (13.56MHz) & ID (125kHz) card |
| 3 Indicator Lights |
| 2 relays supported |
| Tamper alarm |
| Multi-button supported 2 buttons |
| Physical | |
| System: Linux | Door Entry: IC (13.56MHz) & ID (125kHz) card |
| RAM: 64 MB | Reset Button:1 |
| ROM: 128 MB | RS485 Port: 1 |
| Front Panel: Aluminum | Relay Out: 2 |
| Power Supply: PoE (802.3af) or DC 12V/2A | Input: 2 |
| Standby Power: 1.5 W | IP / IK Rating: IP65 / IK08 |
| Rated Power: 3.5 W | Installation: Surface Mounting |
| Camera: 2MP, CMOS | Surface Mounting DIM: 188 x 88 x 34 mm |
| Indicator Light: 3 | Working Temperature: -40℃ to +55℃ |
| Wiegand Port: Support | Storage Temperature: -40℃ to +70℃ |
| Ethernet Port: 1 x RJ45, 10/100 Mbps adaptive | Working Humidity: 10% to 90% (non-condensing) |
| Audio | Networking |
| Audio Codec: G.711 | Protocol: ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Echo Cancellation | |
| DTMF: RFC2833 | |
| Microphone: Built-in microphone | |
| Speaker: Built-in speaker | |
| Video | Package Features |
| Video Codec: H.264 | Package Content: |
| Video Resolution: 1280 x 720 | S213M (Power adapter not included) |
| Viewing Angle: 110°(H) / 60°(V) / 125°(D) | Bracket |
| Max. Image Transfer Rate: 720p – 25fps | Screwing Kit |
| Light Compensation: LED white light | Quick Start Guide |
| Qty/CTN: 12 pcs | |
| N.W/PCS: 0.78 kg | |
| G.W/CTN: 12.00 kg/12.78 kg | |
| Giftbox Size: 237 x 147 x 92 mm | |
| Carton Size: 580 x 500 x 170 mm |
