IP-BFR4K4PK-W
2 reviews
4K LONG RANGE 4 WIRELESS BATTERY BULLET IP CAMERA PK

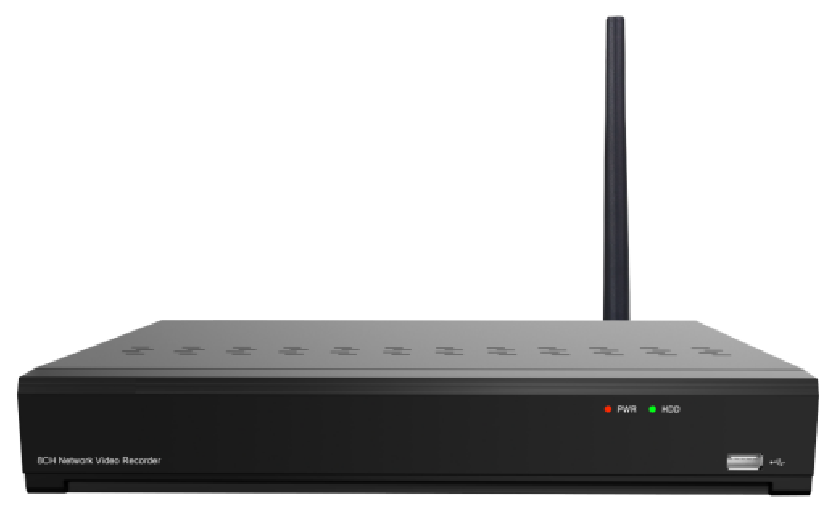

● 1x 8CH 4K Wireless NVR with 1TB

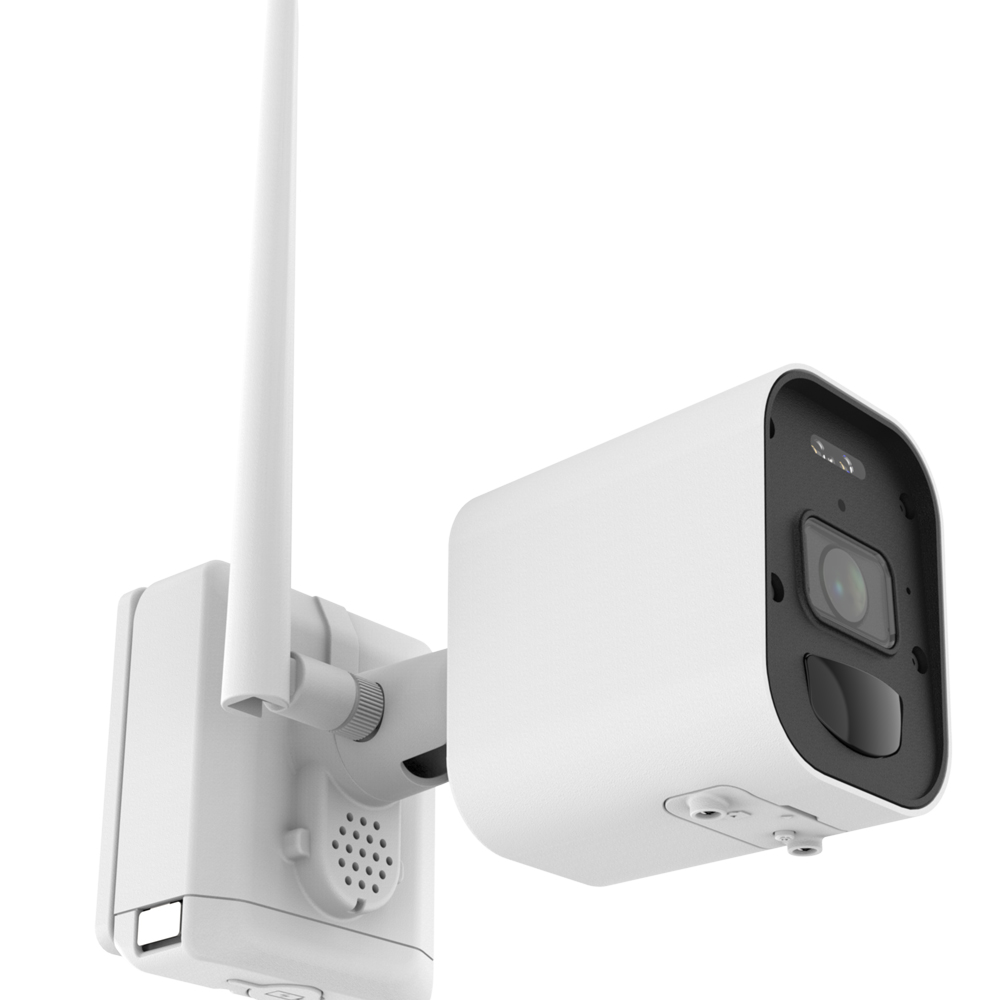

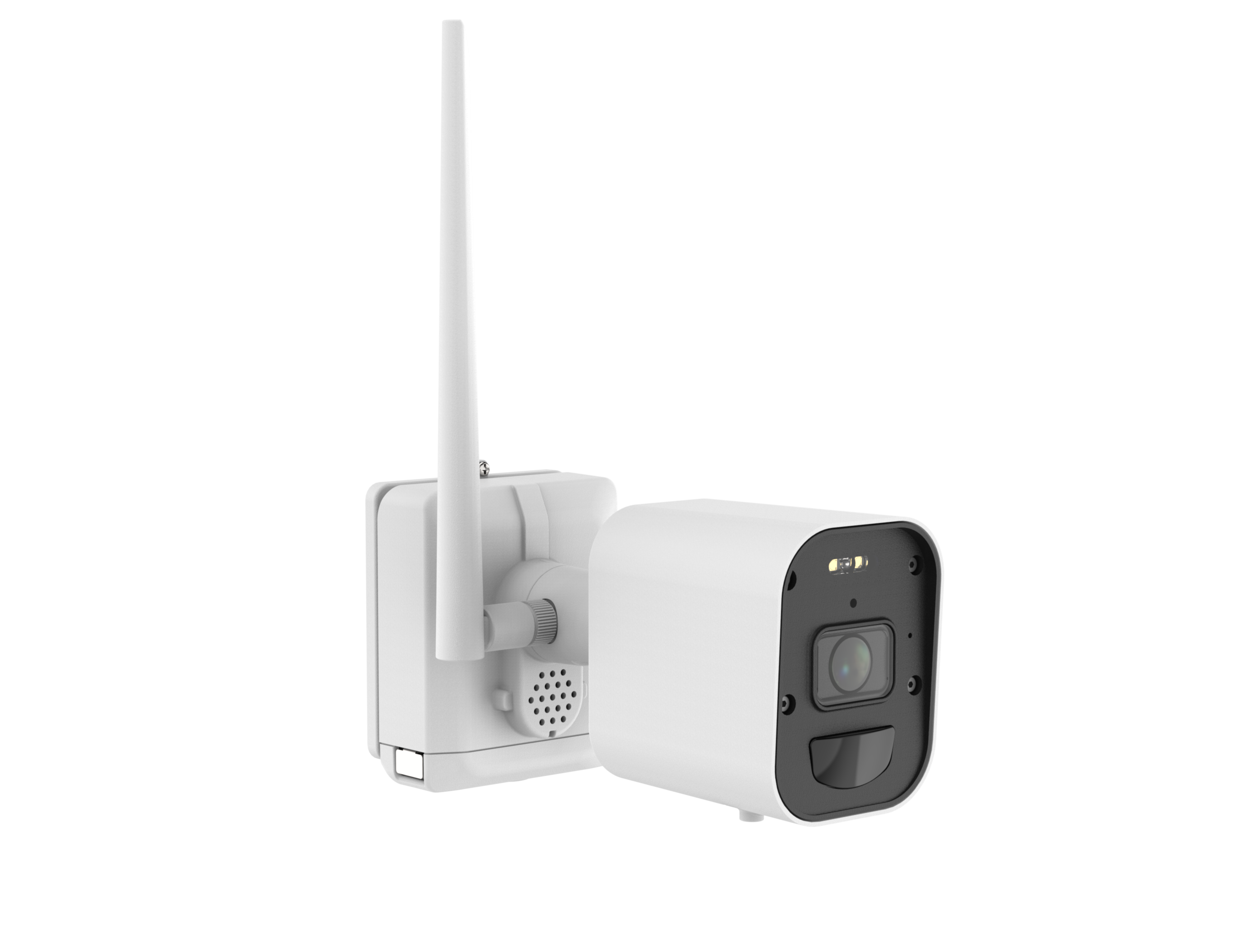

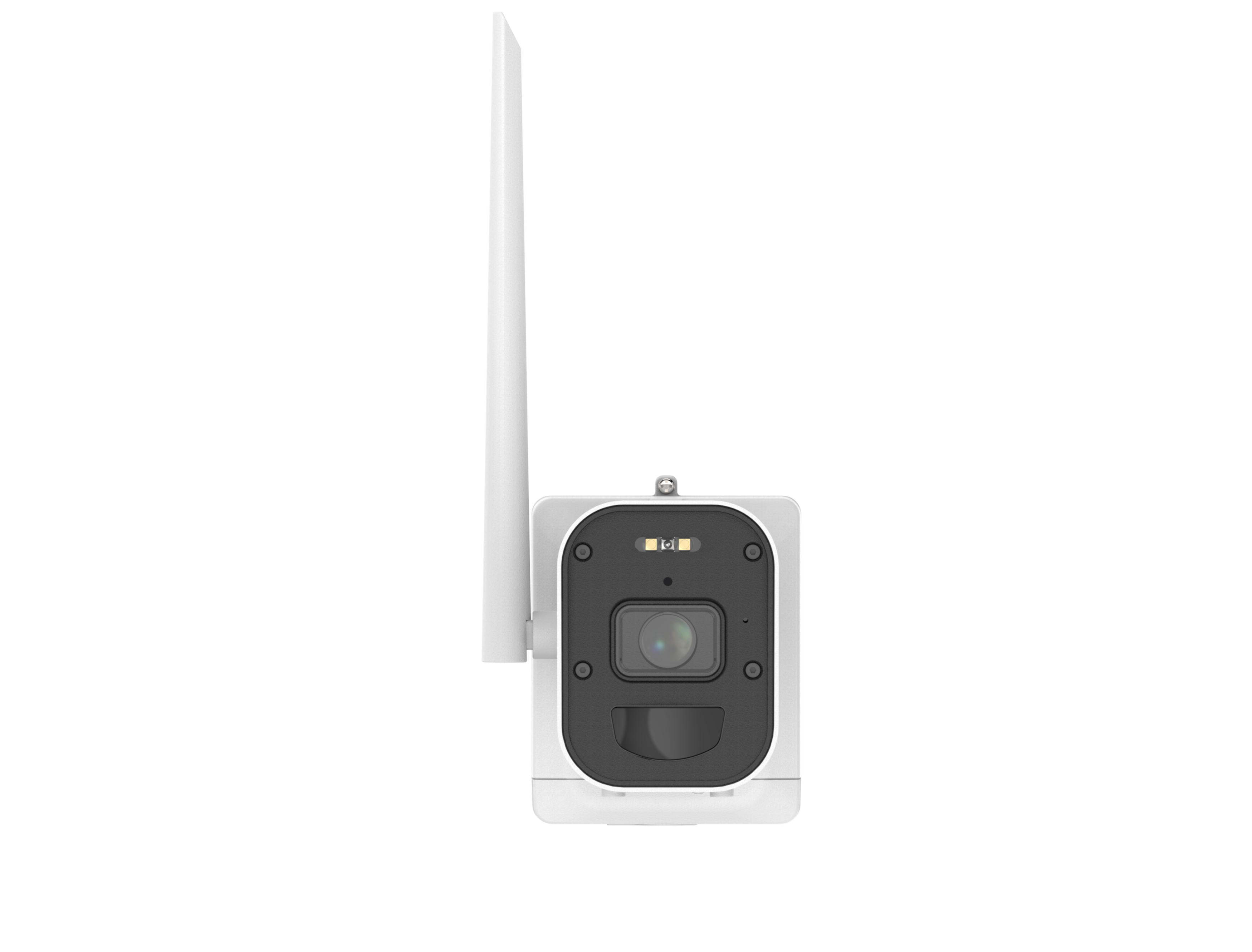

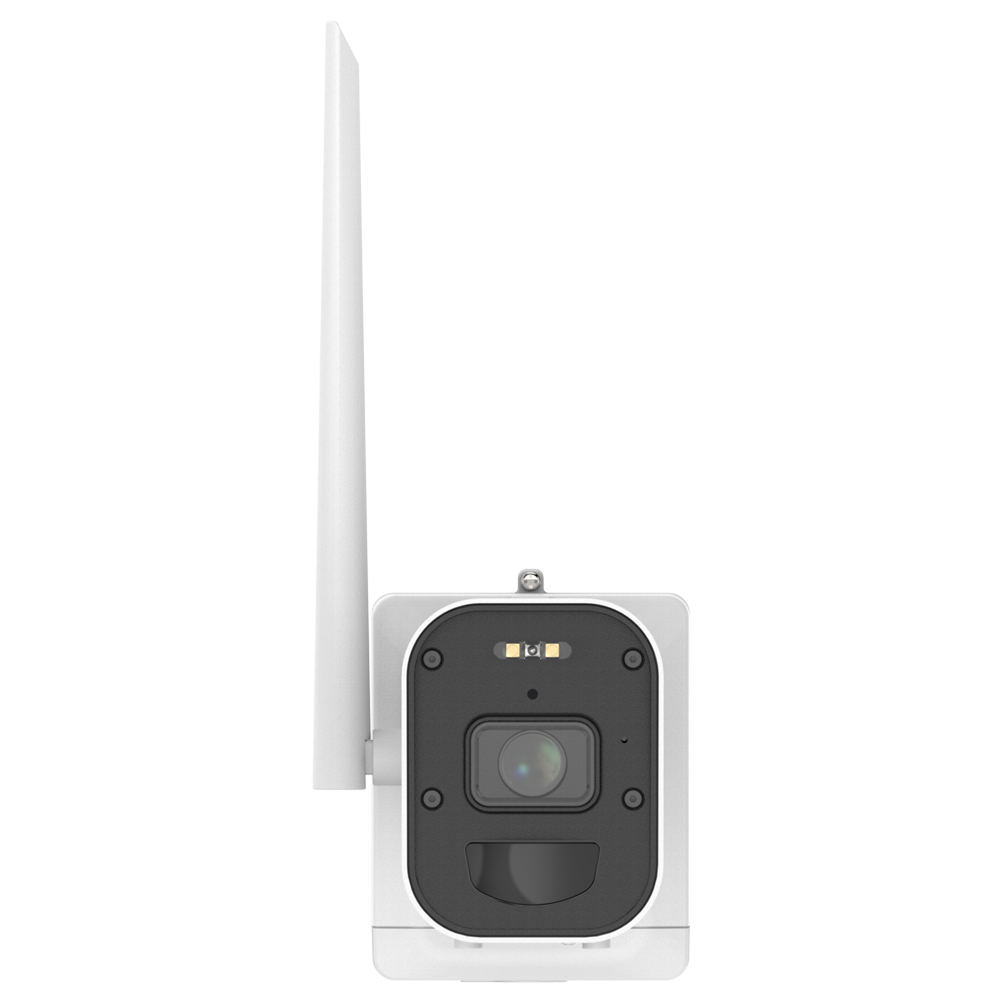

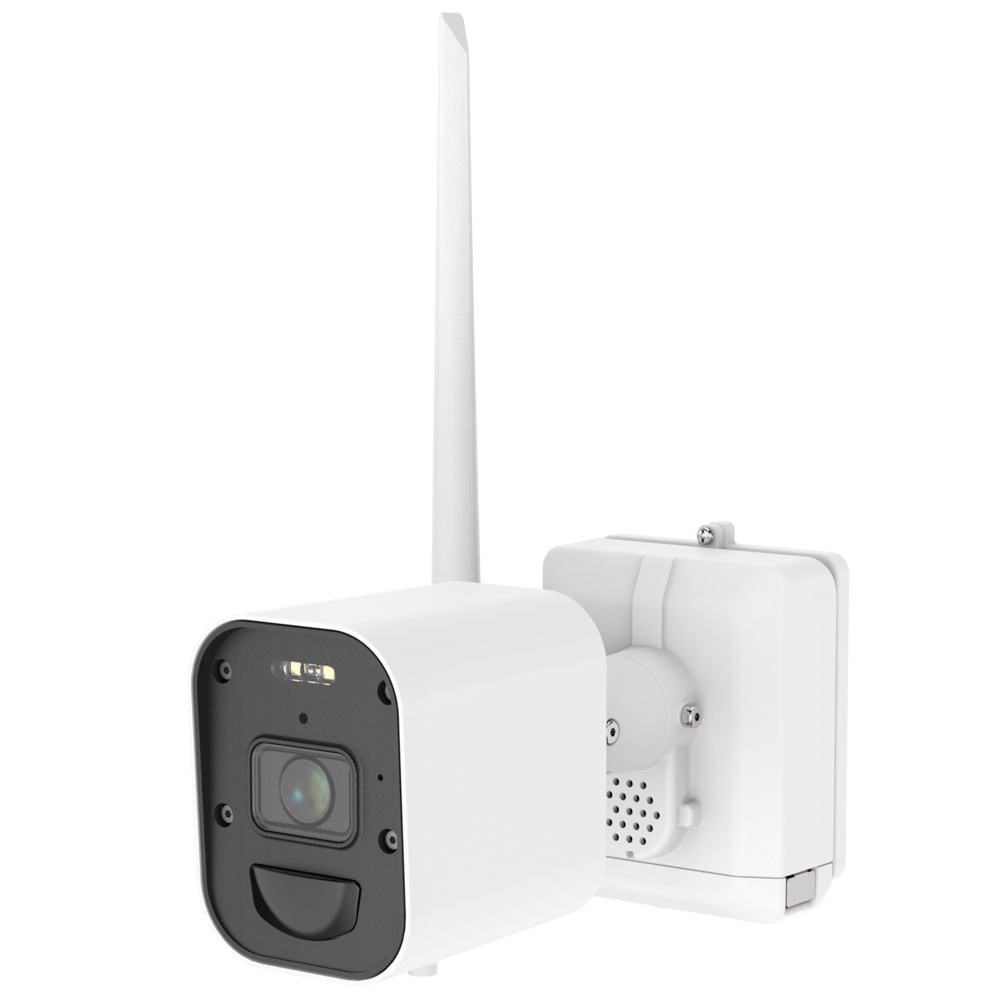

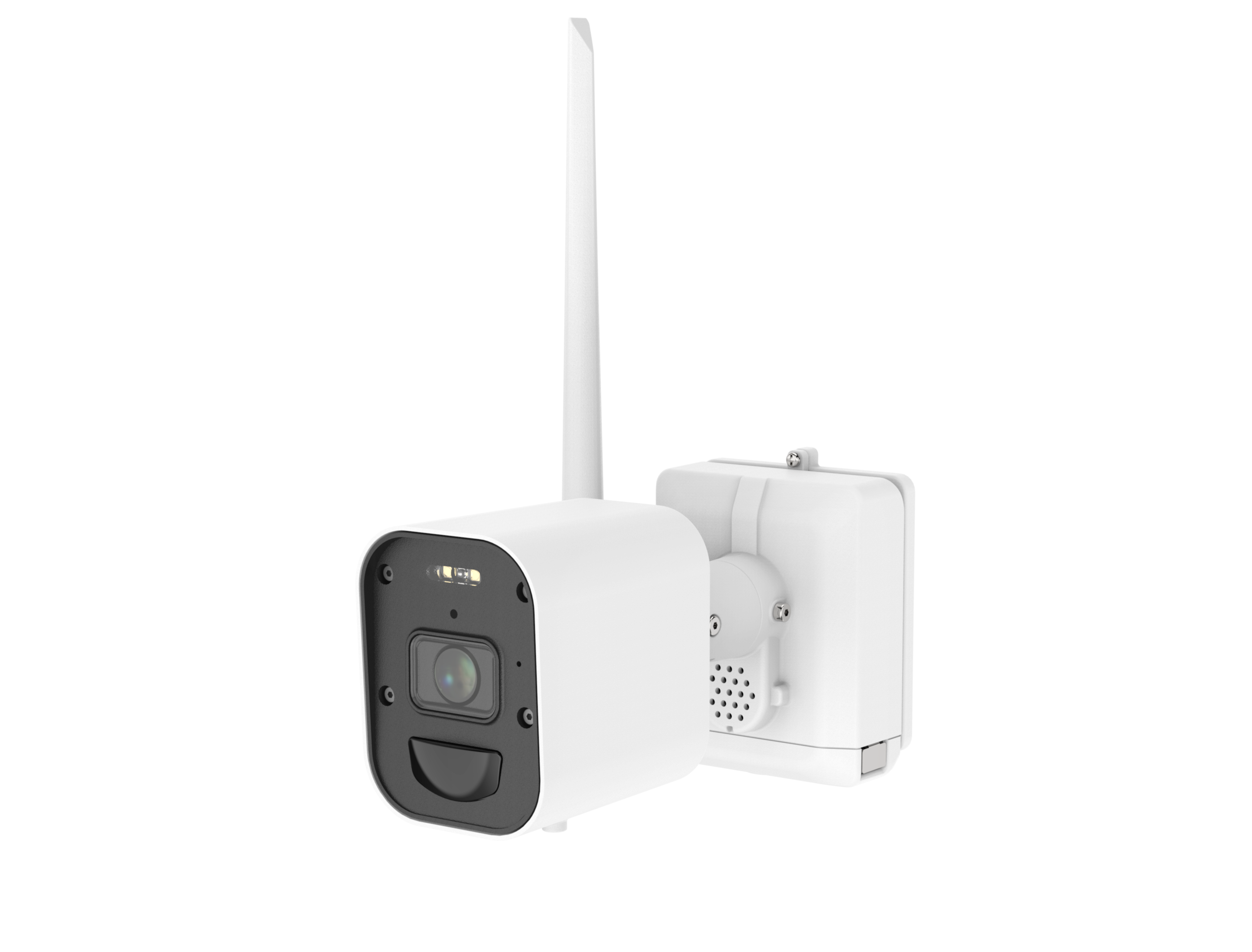

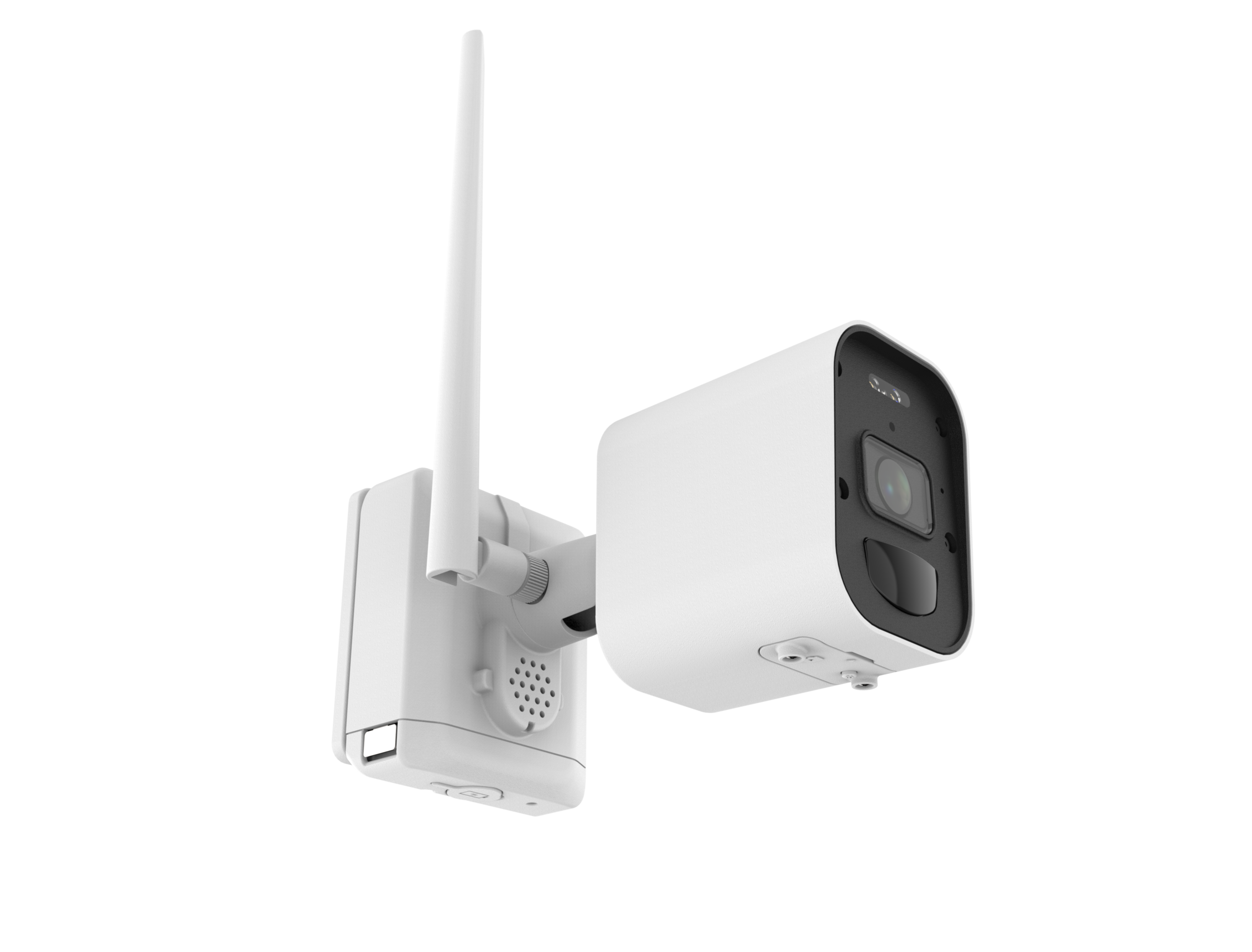

● 4x 4K Long Range Wireless Battery IP Camera
● Up to 2100 Ft Wireless Range (No interference distance)
● PIR Motion Sensor, SD Card, WiFi 802.11ah
● Rechargeable Battery up to 6 Months
● Two Way Audio, IP66 Weather Proof
● 70 Ft Infrared Night Vision
| Model No. | IP-BFR4K2PK-W | |||||
| Wireless Battery IP Camera Specification | ||||||
| Camera | ||||||
| Image sensor | 1/2.7” 8MP progressive scan CMOS | |||||
| Min. illumination | 0.05 lux @F1.2, AGC ON, 0 lux with IR | |||||
| Shutter time | 1/3s ~ 1/10,000s | |||||
| Lens | 2.8mm@F2.0, angle of view: 92.2° | |||||
| Lens mount | M12 | |||||
| Day & night | IR cut filter with auto switch | |||||
| Digital noise reduction | 3D DNR | |||||
| Compression Standard | ||||||
| Video compression | H.264 / MJPEG / H.265 | |||||
| H.264 codec profile | Main profile | |||||
| Bit rate | 32 Kbps ~ 16 Mbps | |||||
| Dual streams | Support | |||||
| Image | ||||||
| Max. Image Resolution | 3840*2160 (8MP) | |||||
| Frame rate | 30fps (1920 × 1080), 30fps (1280 x 720) | |||||
| Image settings | Rotate Mode, Saturation, Brightness, Contrast Sharpness adjustable by client software or web browse | |||||
| BLC | Yes, zone configurable | |||||
| ROI Codec | Support | |||||
| Function | ||||||
| Motion Angle | Up to 120° | |||||
| Motion Distance | Up to 40 Feet | |||||
| Motion PIR | PIR Motion Detection | |||||
| Battery Capacity | 2900mAh/ea | |||||
| Battery Life | Up to 350 charges | |||||
| Power Consumption | 420mA(Activate）/ 400μA (Sleep) | |||||
| Warnings | Low Battery Warnings via app notifications | |||||
| Interface | ||||||
| Power Source | DC 4.2V±10% | |||||
| Two way audio | Support | |||||
| Speaker | Built-in, Weather Proof | |||||
| Mic | Built-in, Weather Proof | |||||
| SD Card | SD Slot Up to 256GB | |||||
| Wireless | ||||||
| Wireless Standards | WiFi 802.11ah | |||||
| Wireless Distance | Up to 2100 Ft with a clear line-of-site | |||||
| General | ||||||
| Operating conditions | (-22°F ~ 140 °F) humidity 95% or less (non-condensing) | |||||
| Power supply | DC 4.2V±10% | |||||
| Power consumption | Max. 1.8W | |||||
| Weather proof rating | IP66 | |||||
| Housing | Metal | |||||
| IR range | Up to 70 Ft | |||||
| Dimension | 5.4" x 2.9" x 3.5" | |||||
| Weight | 1.1 lbs | |||||
| Wireless NVR Specification | ||||||
| Video/Audio input | ||||||
| Video compression | H.265 | |||||
| IP Video Input | 8-ch | |||||
| Incoming Bandwidth | 32 Mbps | |||||
| Video /Audio output | ||||||
| HDMI output | HDMI Up to 4K (1280*1024, 1280*720, 1920*1080,2560*1440, 3840*2160) | |||||
| Video spot output | N/A | |||||
| Encoding resolution | 4K/5MP/1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | |||||
| Frame rate | 4K UHD@15fps(Auto fps, Adaptive bitrate) | |||||
| Video bit rate | 32 Kbps ~ 8192 Kbps, or user defined (Max. 8192 Kbps) | |||||
| Dual-stream | Support | (Sub-stream at CIF / QCIF: 30fps) | |||||
| Stream type | Video, Video & Audio | |||||
| Playback resolution | 4K/5MP/1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | |||||
| Synchronous playback | 8-ch | |||||
| Hard Disk | ||||||
| SATA | 1 SATA interface | |||||
| Capacity | Up to 6TB capacity | |||||
| External interface | ||||||
| Network interface | 1 RJ-45 10 /100 Mbps WAN interface; 3 RJ-45 10 / 100M LAN interfaces. | |||||
| Serial interface | N/A | |||||
| USB interface | 3 USB2.0 | |||||
| Alarm in/out | N/A | |||||
| Wireless-WiFi | ||||||
| Frequency Band | WiFi 802.11ah | |||||
| Antenna Structure | 1 MIMO | |||||
| Transmission Rate | 300 Mbps | |||||
| Transmission Standard | IEEE 802.1b/g/n | |||||
| Network Protocol | IPv6, UPnP, SNMP, NTP, SADP, DDNS, SMTP, NFS, iSCSI. | |||||
| Remote connection | 128 | |||||
| General | ||||||
| Power supply | 12 VDC 2A | |||||
| Consumption | ≤12 W | |||||
| Working temperature | 14ᵒF - 131ᵒF | |||||
| Working humidity | 10% ~ 90% | |||||
| Chassis | 1U | |||||
| Dimensions | 12 × 9 × 2 Inch | |||||
| Weight | < 1.2lb without HDD | |||||
