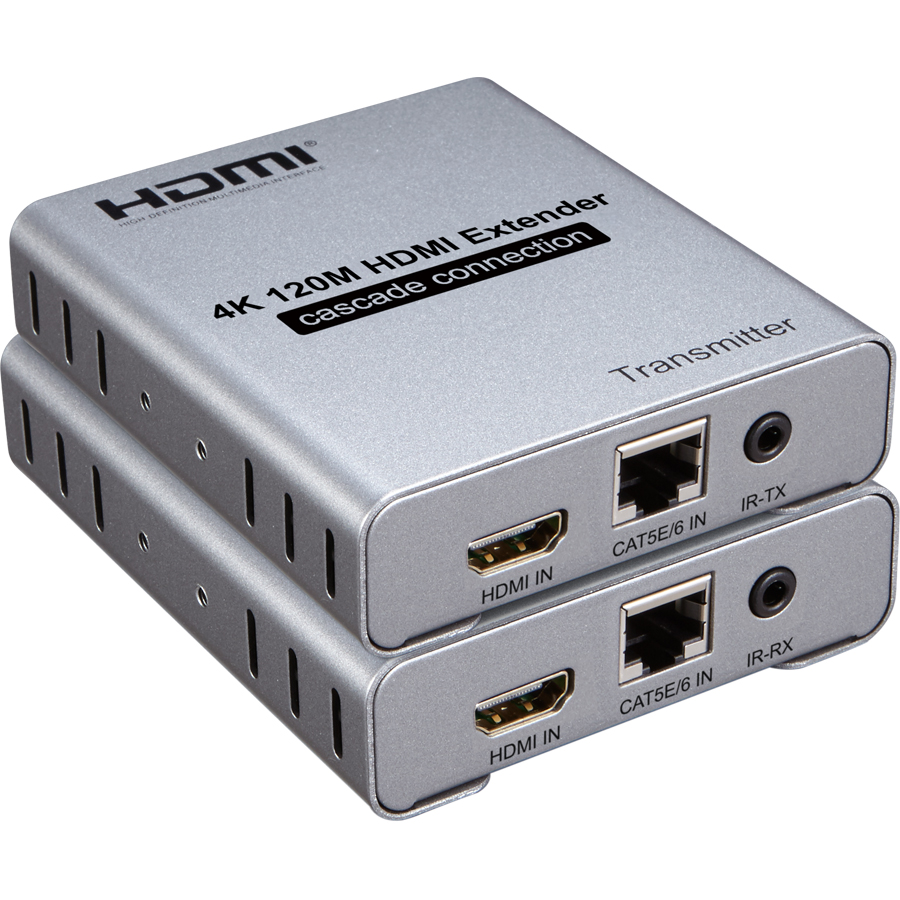

DSS-HDMI-EXT400-4K
2 reviews
HDMI Extender up to 400 ft
- Following TCP/IP standard.
- Support HDMI1.3 protocol.
- HDCP1.1 & 1.2 protocol compliant
- Support point-to-point mode, one point-to-many mode and cascade connection mode.
- Support IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.
| Length of CAT-5E/CAT-6 cable between Rx and TX | up to 120 meters |
| HDMI input | 4K/1080p/720p/576p/576i/480p/480i |
| Support audio format | DTS/Dolby/LPCM |
| HDMI output | 4K/1080p/720p/576p/576i/480p/480i |
| Max bandwidth | 340MHz |
| Max baud rate | 3.4Gbpsx3 |
| Input video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TTL) |
| Input HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| Output HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| TX Max working current | 350mA |
| RX Max working current | 200mA |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5% to 90%RH (No Condensation) |
| Dimension (L x W x H) | 94x84x24(mm) |
| TX Weight | 223g |
| RX Weight | 223g |
