DSS-HDMI-EXT100
2 reviews

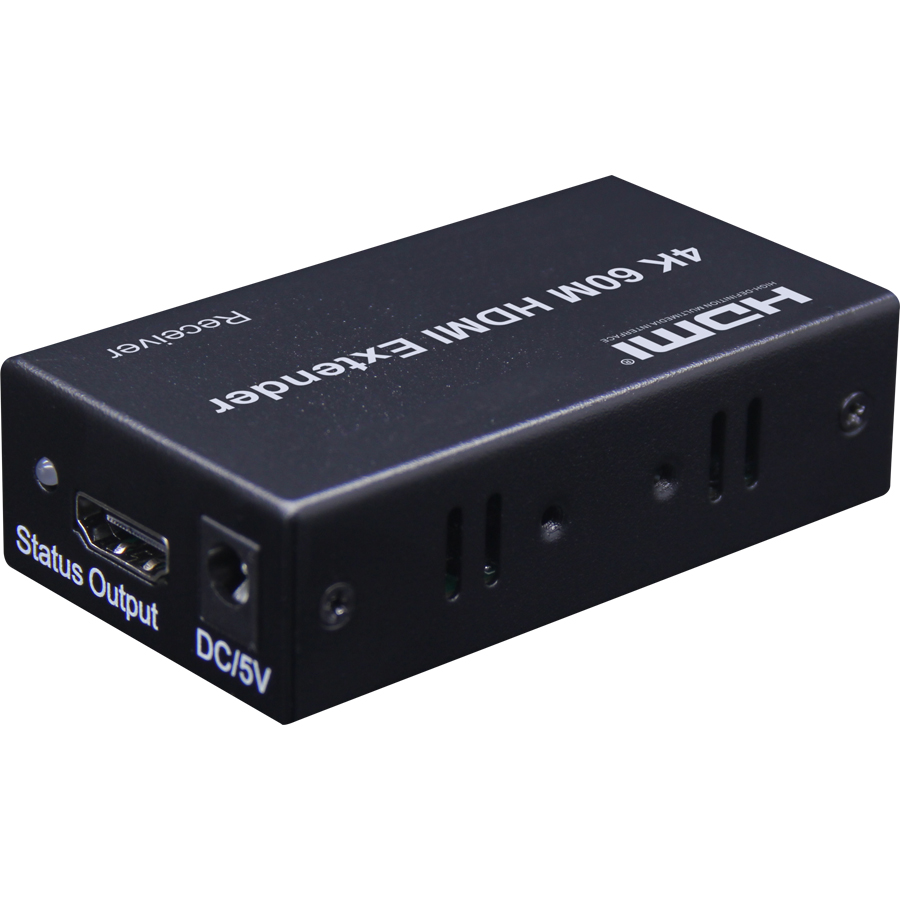

HDMI Extender up to 100 ft
Support HDMI 1.4b, DVI 1.0 HDCP 1.4
UP to 150 Ft
Long power consumption, low temperature and high safety
Support HDMI out Down scaling
| Specifications | |
| Length of CAT-5E/CAT-6 cable between Rx and TX | Up to 150 Ft |
| HDMI input | 4K/1080p/720p/576p/576i/480p/480i |
| HDMI output | 4K/1080p/720p/576p/576i/480p/480i |
| Max bandwidth | 340MHz |
| Max baud rate | 3.4Gbpsx3 |
| Input video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TTL) |
| Input HDMI cable distance | ≤10m AWG26 HDMI standard cable |
| Output HDMI cable distance | ≤10m AWG26 HDMI standard cable |
| TX Max working current | 350mA |
| RX Max working current | 200mA |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5% to 90%RH (No Condensation) |
| Dimension (L x W x H) | 81x47x22(mm) |
| TX Weight | 102g |
| RX Weight | 103g |
