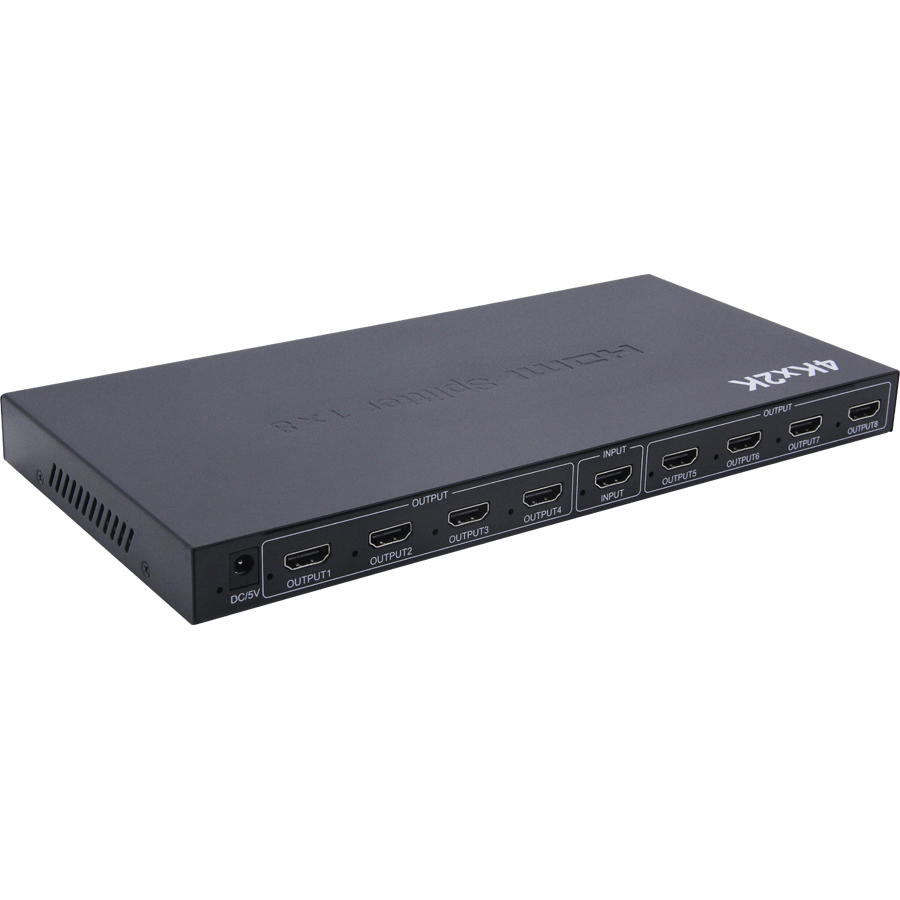

DSS-HDMI-108
1 to 8 HDMI Splitter, Support 3D, 2K, 4K
- Support HDMI1.4b version
- Support 3D video format
- Support high resolution up to 3840x2160/30Hz
- Support highest rate of 3.4 G and TMDS clock can be up to 340 MHz
- Support 8/10/12 bit deep color
- Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 10 meters,output up to 15 meters.
when the resolution is 4K, input up to 5 meters, output up to 10 meters.
- Support one single HDMI source, accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and ect.
- 5V/3A power adapter
HDMI version …………………………………………………………………….. HDMI 1.4b
HDMI resolution ……………………………….. ……….. ……….. …up to 3840x2160/30Hz
Support video format ………………………………..…………………..8/10/12bit deep color
Support audio format………………..………. ….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………………………………………….340MHz
Max baud rate……………….…….………………….…………………………………..3.4Gbps
Input cable distance.…………………………….(1080p resolution) ≤10m,(4K resolution)≤5m AWG26 HDMI standard cable
Output cable distance…………………………(1080p resolution) ≤15m,(4K resolution)≤10m AWG26 HDMI standard cable
Max working current……………………………………………………………………….....1.58 A
Power adapter format………………….input AC (50HZ, 60HZ) 100V-240V; output: DC5V/3A
Operating Temperature range…………………………..…………….………………(-15 to +55℃)
Dimension (L x W x H)………………...............……………………………….276x136x24 (mm)
Weight…….…..………………………………………………………..…….……………………660g
