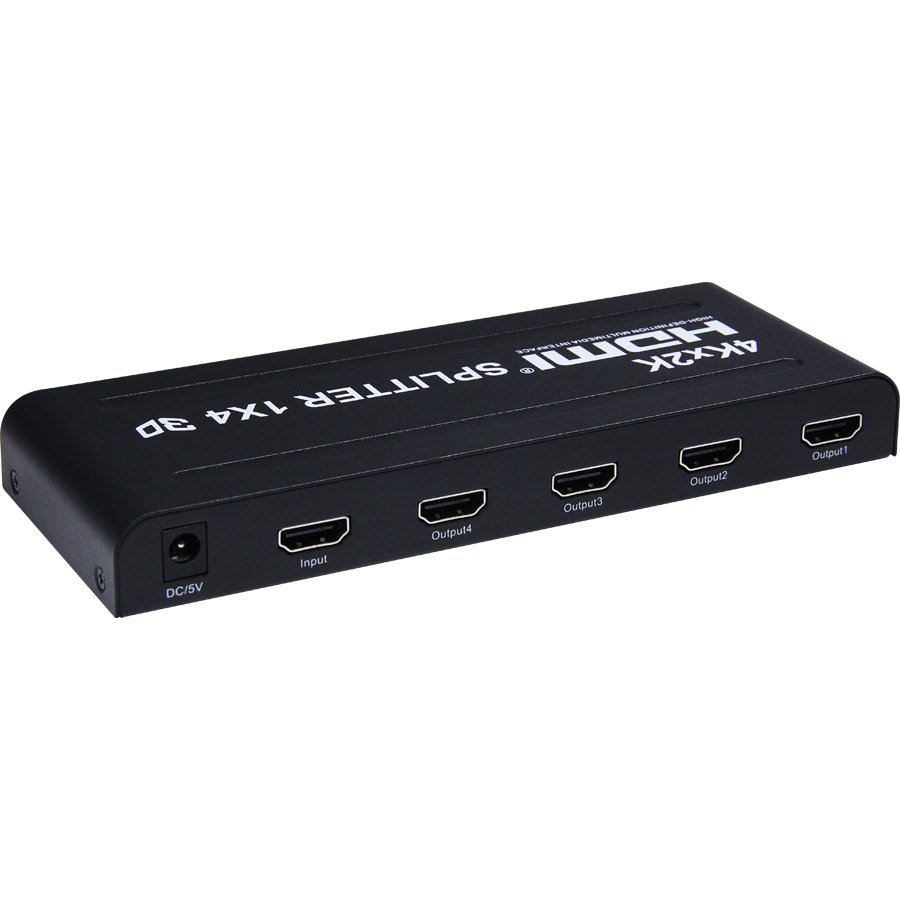

DSS-HDMI-104
1 to 4 HDMI Splitter, Support 3D, 2K, 4K
- Support HDMI 1.4b version
- Support 3D video format
- Support high resolution up to 3840X2160/30HZ
- Support highest rate of 3.2 G and TMDS clock can be up to 320 MHz
- Support 8/10/12 bit deep color
- Support AWG26 HDMI standard cable: input up to 15 meters,output up to 25 meters.
(when the resolution is 4K, input up to 12 meters, output up to 15 meters.)
- Support one single HDMI source，accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and ect.
- 5V/2A power adapter
HDMI version …………………………………………………………………….. HDMI 1.4b
HDMI resolution ……………………………….. ……….. ……….. …up to 3840*2160/30Hz
Support video format ………………………………..…………………..…8/10/12 bit deep color
Support audio format………………..………. …DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………………………………………….320MHz
Max baud rate……………….…….………………….…………………………………..3.2Gbps
Input cable distance.…………………………….(1080p resolution) ≤15m,(4K resolution)≤12m AWG26 HDMI standard cable
Output cable distance…………………………(1080p resolution) ≤25m,(4K resolution)≤15m AWG26 HDMI standard cable
Max working current……………………………………………………………………….....500mA
Power adapter format:…………………….input AC (50HZ, 60HZ) 100V-240V; output: DC5V/2A
Operating Temperature range…………………………..…………….…………… (-15 to +55℃)
Dimension (L x W x H)………………...............……………………………….……178x66x20 (mm)
Weight…….…..………………………………………………………..…….………………………220g
