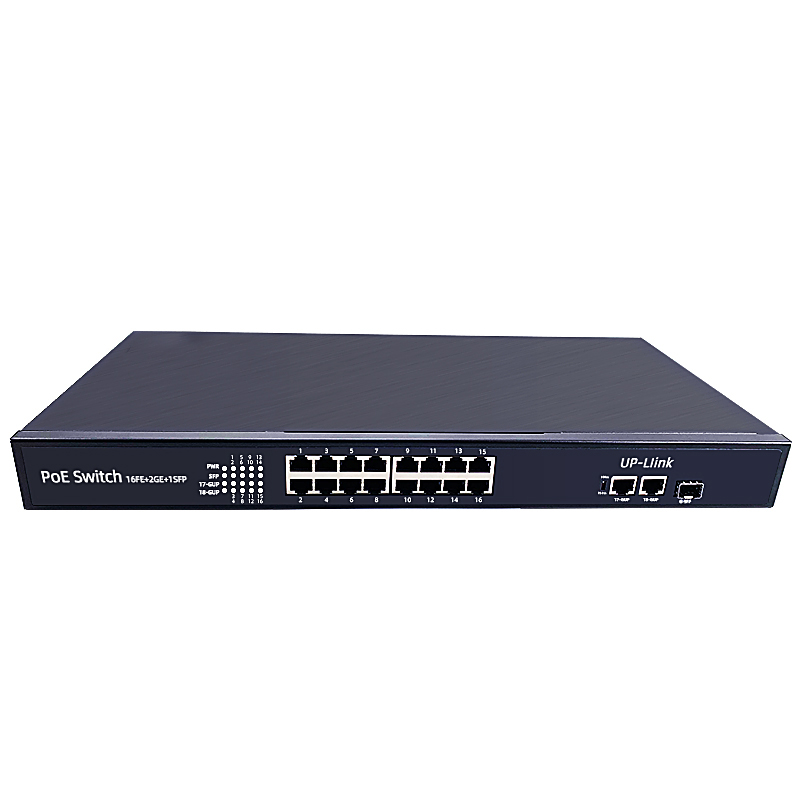

DSS-POE-116-N
2 reviews
16 Port Gib PoE Switch EPOE
- 16 POE Ports Plus one additional gigabit uplink
- 100Mbps (1 Gigabit Uplink) Data transfer rate
- 120W Max Power (30W max per port)
- IEEE 802.3af Standard
- 16 DIP Switches full power on/off control
- Power Protection OVP & OCP
- Unmanaged Ports Automatically detect devices
- EPOE Up to 700 Ft
| Standard | IEEE 802.3/u 10/100/1000Base/TX IEEE 802.3x Flow Control IEEE 802.3af PoE Compliant Midspan PoE Compliant |
| Number of PoE Ports | 16 PoE Ports + 1 Gigabit Uplink Port |
| MAC Address | 8K |
| Buffer Memory | 512kb |
| Transmission Method | Store and Forward |
| Filtering/Forwarding Rates | 1000Mbps port - 1,488,000pps 100Mbps port - 148,800 10Mbps port - 14,880pps |
| Transmission Media | 10 BaseT Cat 3, 4, 5 UTP 100/10000 BaseTx Cat5 UTP/STP |
| Max Power | 120W (30W Per Port) |
| Output PoE Pin | 4, 5, 7, 8 |
| LED Indicators | Ports 1-16: 10/100Mbps, PoE on/off Power, Port 17: 10/100/1000Mbps |
| Power Adapter | Input: 100-240VAC, 50-60Hz Output: 56VDC 2.14A (120W) |
| Dimensions | 9.6” x 4.6” x 1.6” (245 x 118 x 40mm) |
| Weight | 3.5lbs (1.6kg) |
| Operating Temperature | 32ºF ~ 122ºF (0ºC - 50ºC) |
| Humidity | 10 ~ 90% RH (Non-Condensing) |
| Certifications | FCC Class A, CE |
