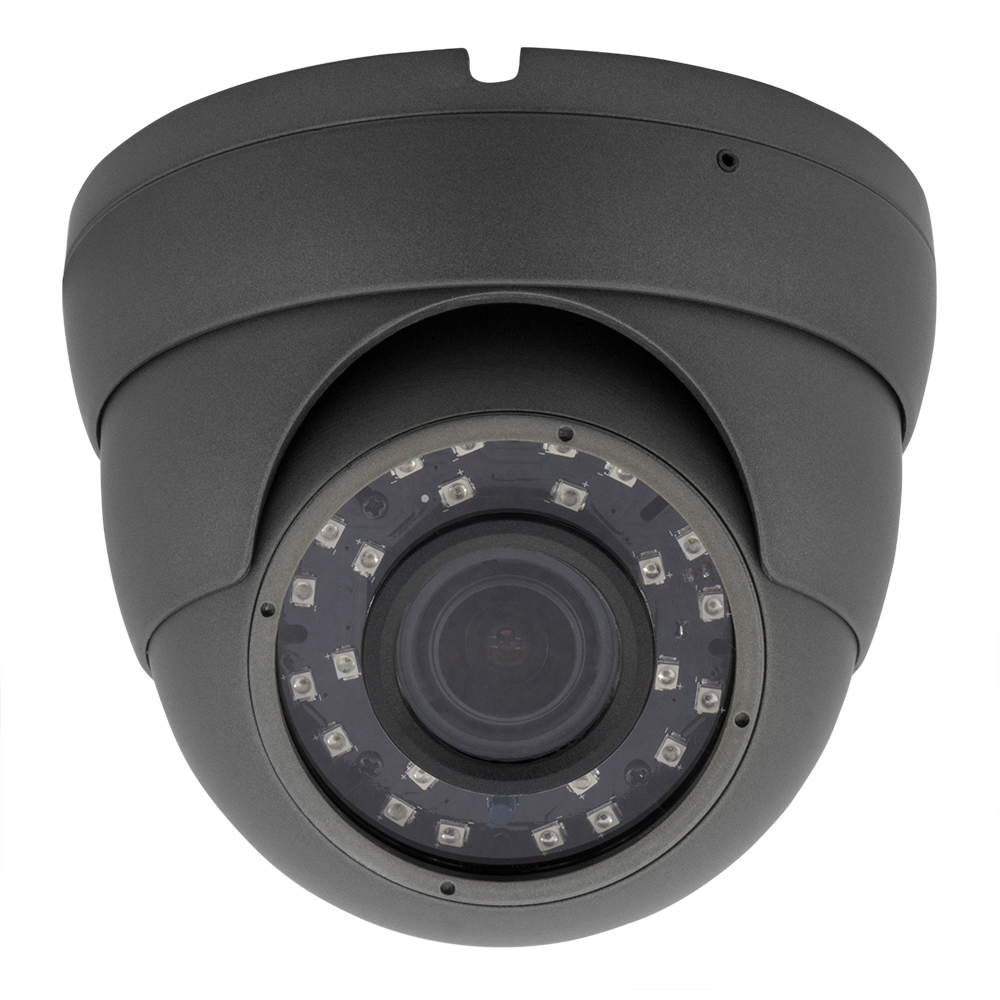

DVRT-4KB

"NDAA COMPLIANCE" HD 4K 8MP TVI DAY/NIGHT WEATHERPROOF IR VARI-FOCAL LENS DOME CAMERA

Categories:

● 8 MP CMOS image sensor

● High Performance 8MP Resolution

● Compatible with 8MP TVI and Analog

● UTC, OSD, WDR, 3D DNR, Smart IR

● 2.8-12 mm Vari-Focal Lens

● 24 Built in IR LEDs, (150 Ft. Night Vision)

● Vandal Resistant IP66 Weatherproof

● True Day/Night

● 3 Years Warranty

Technical Specifications
Model No.	DVRT-8MPB
Camera
Image sensor	1/2.7“ Progressive Scan CMOS
Min. illumination	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR /0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter time	1 / 25 s to 1 / 50,000 s
Lens	2.8-12mm Angle of View: 90.9° - 32 °
Lens mount	M12
Day & night	ICR
Digital noise reduction	3D DNR
Wide dynamic range	DWDR
Synchronization	Internal synchronization
HD Video Output	1 Analog HD ouput yellow
Video	Compatible with 8MP TVI and Analog
S/N Ratio	More than 52dB
Max. Image Resolution	3840 (H) × 2160 (V)
Signal System	NTSC
Frame rate	8MP@12fps
Image settings	Saturation, brightness, contrast, sharpness adjustable through client software or web browser
BLC	Supported
General
Operating conditions	(-22°F ~ 140 °F) humidity 90% or less (non-condensing)
Power supply	12 VDC
Power consumption	Max. 4W
Weather proof rating	IP66
IR range	Up to 140 ft
Dimension	4.69” × 3.94”
Weight	1.54 Lbs
