DVRT-4KW

2 reviews

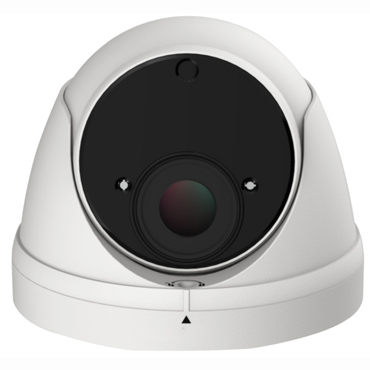

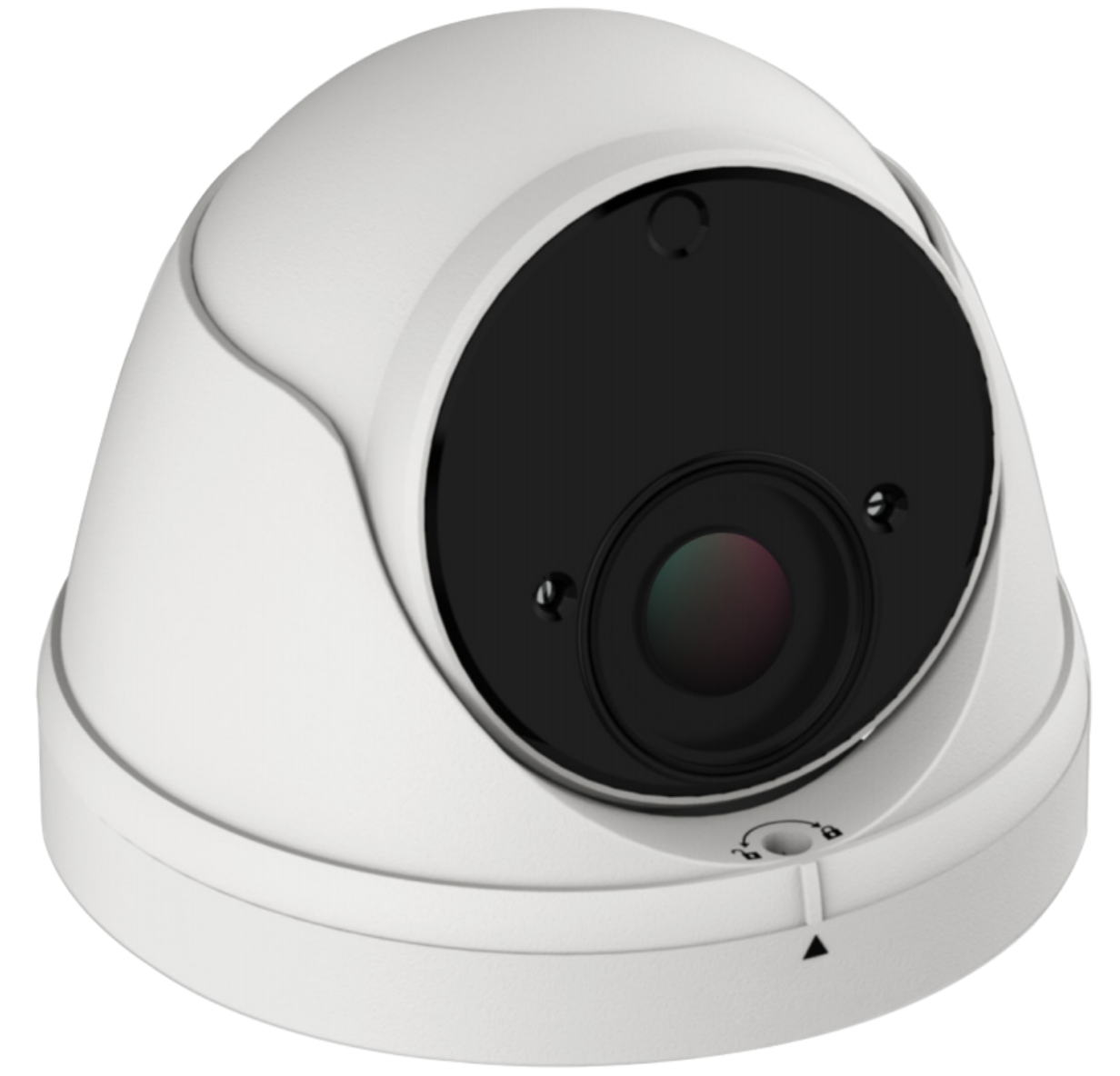

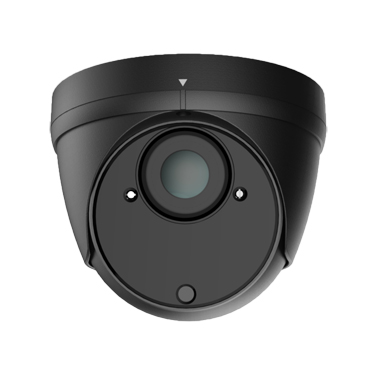

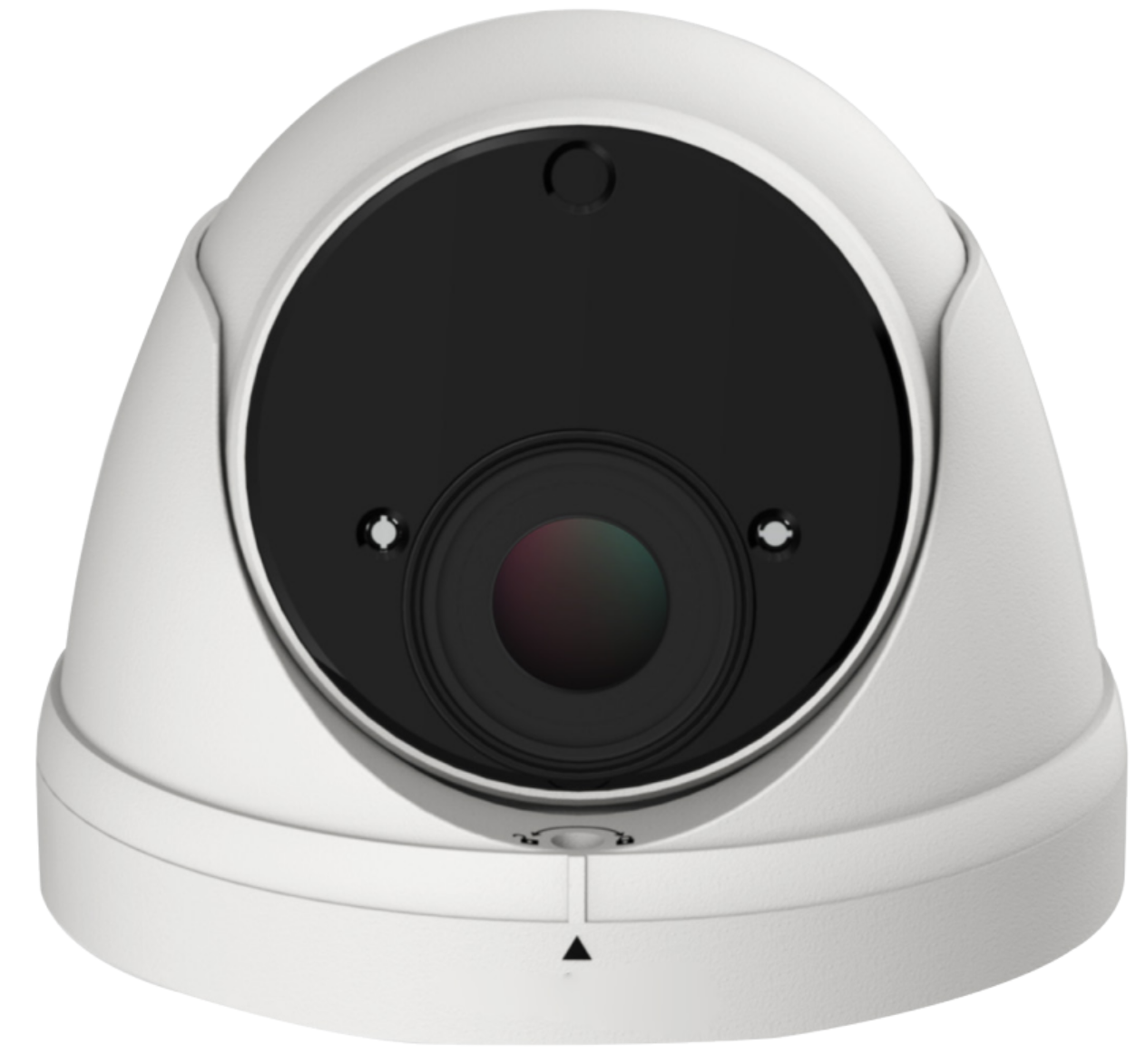

"NDAA COMPLIANCE" HD 4K 8MP TVI DAY/NIGHT WEATHERPROOF IR VARI-FOCAL LENS DOME CAMERA

● 8 MP CMOS image sensor

● High Performance 8MP Resolution

● Compatible with 8MP TVI and Analog

● UTC, OSD, WDR, 3D DNR, Smart IR

● 2.8-12 mm Vari-Focal Lens

● 32 Built in IR LEDs, (120 Ft. Night Vision)

● Vandal Resistant IP66 Weatherproof

● True Day/Night

● 3 Years Warranty

Technical Specifications
Model No.DVRT-4KW
Camera
Image sensor1/2.7“ Progressive Scan CMOS
Min. illumination0.01 Lux @ (F1.2,AGC ON),0 Lux with IR /0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter time 1 / 25 s to 1 / 50,000 s
Lens 2.8-12mm Angle of View: 90.9° - 32 °
Lens mountM12
Day & night ICR
Digital noise reduction3D DNR
Wide dynamic rangeDWDR
SynchronizationInternal synchronization
HD Video Output1 Analog HD ouput yellow
VideoCompatible with 8MP TVI and Analog
S/N RatioMore than 52dB
Max. Image Resolution3840 (H) × 2160 (V)
Signal SystemNTSC
Frame rate8MP@12fps
Image settingsSaturation, brightness, contrast, sharpness adjustable through client software or web browser
BLCSupported
General
Operating conditions(-22°F ~ 140 °F) humidity 90% or less (non-condensing)
Power supply12 VDC
Power consumptionMax. 4W
Weather proof ratingIP66
IR rangeUp to 120 ft
Dimension 4.69” × 3.94”
Weight 1.54 Lbs
